Cable gland, PG thread, silver grey

Cable gland, PG thread, silver grey

Type V-TEC PG7 SGR | Item no. 2022605 | EAN 4012195160694

Show all variants
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Flame resistant 750 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP68
ThreadPg 7
For Ex zoneWithout
Thread typePG
Bend protectionno
With locknutno
Sealing insert, multipleno
Flat cable glandno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,41 mm
Nominal thread size7
Hexagonal corner dimension16,5 mm
Sealing area D, max.6,5 mm
Sealing area D, min.2,5 mm
WAF15
Version forStraight
Thread length8 mm
Unstable torque1,67 Nm
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
DimensionPG7
MaterialPolyamide
ColourSilver grey; RAL 7001
CO2 Footprint (GWP) Cradle-to-Gate0,0225 kg CO₂e / 1 Piece

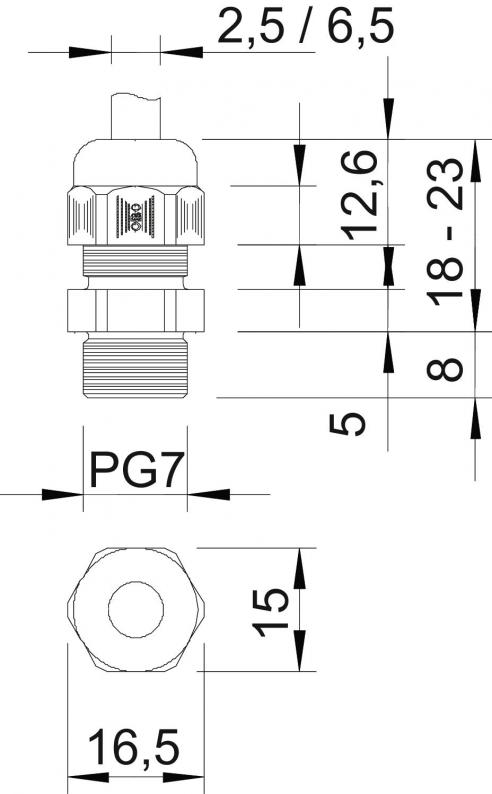

Dimensions

Dimension L min.18 mm
Dimension L max.23 mm
Dimension L18 mm
Dimension L25 mm
Dimension L312,6 mm
Dimension E16,5 mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (3)
3D data downloads (1)
Tender specifications (2)

Variants

Thread
V-TEC PG7 SGR
Item no.
2022605
Thread
Pg 7
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC PG9 SGR
Item no.
2022613
Thread
Pg 9
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC PG11 SGR
Item no.
2022621
Thread
Pg 11
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC PG13.5 SGR
Item no.
2022648
Thread
Pg 13,5
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC PG16 SGR
Item no.
2022656
Thread
Pg 16
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC PG21 SGR
Item no.
2022664
Thread
Pg 21
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
