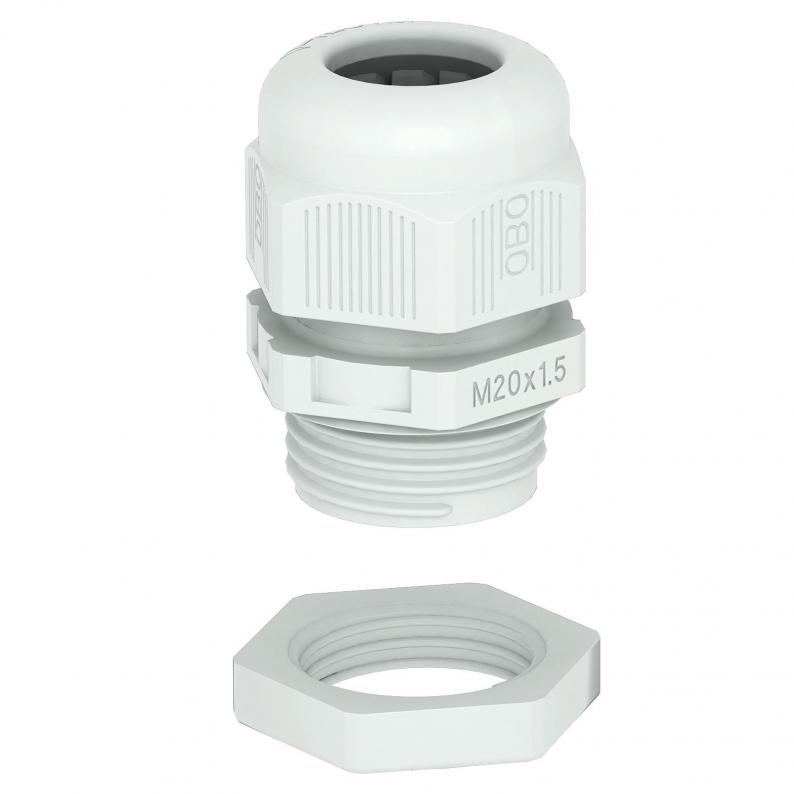

Cable gland, metric thread, set with locknut, light grey
Type V-TEC VM12+ LGR | Item no. 2022762 | EAN 4012195860921
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
Smallest selling unit: 50 piece
50piece
Description
Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C. Including locknut.
Technical data
Technical data
| Impact-resistant | no |
|---|---|
| Halogen-free | yes |
| Fibre-glass reinforced | no |
| explosion-proof | no |
| Strain relief option | yes |
| Protection rating | IP68 |
| Thread | M12 x 1,5 |
| For Ex zone | Without |
| Thread type | Metric |
| Bend protection | no |
| With locknut | no |
| Sealing insert, multiple | no |
| Flat cable gland | no |
| Type of seal | Sealing ring |
| Splittable gland | no |
| For Ex zone gas | Without |
| For Ex zone dust | Without |
| Thread increase | 1,5 mm |
| Nominal thread size | 12 |
| Sealing area D, max. | 7 mm |
| Sealing area D, min. | 3,5 mm |
| Dimension E1 (mm) | 16,5 mm |
| Dimension E2 | 19 mm |
| Version for | Straight |
| Thread length | 8 mm |
| WAF 1 | 15 mm |
| WAF 2 | 17 mm |
| Unstable torque | 2 Nm |
| Permitted temperature range, max. | 65 °C |
| Permitted temperature range, min. | -20 °C |
| Flame-resistant | acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C |
| Dimension | M12 |
| Material | Polyamide |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0255 kg CO₂e / 1 Piece |
Dimensions
| Dimension L min. | 18,5 mm |
|---|---|
| Dimension L max. | 23,5 mm |
| Dimension L1 | 8 mm |
| Dimension L2 | 5 mm |
| Dimension L3 | 5 mm |
