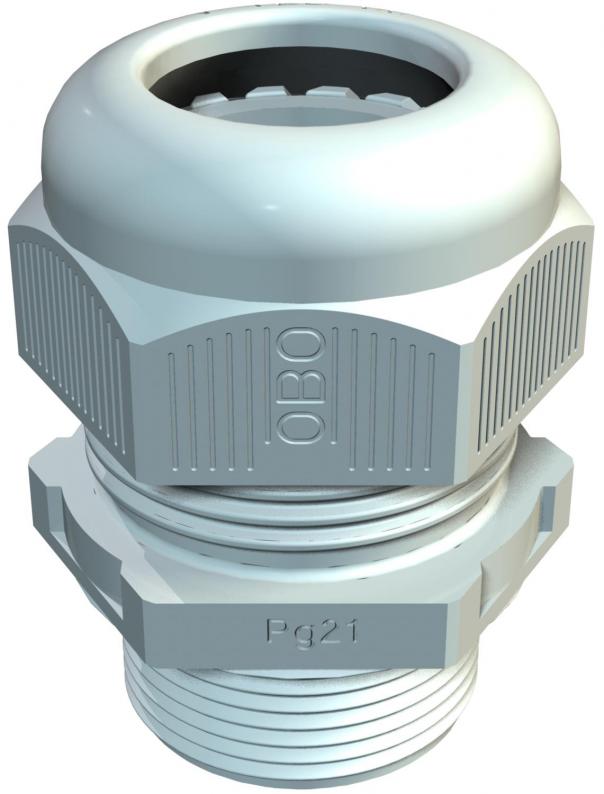

Cable gland, long PG thread, light grey

Cable gland, long PG thread, light grey

Type V-TEC L PG7 LGR | Item no. 2024284 | EAN 4012195839538

Show all variants
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Light grey; RAL 7035

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Cable gland with PG connection thread in cap nut design, suitable for junction boxes, housings, distributor boxes in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Det Norske Veritas
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread Pg
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP68
ThreadPg 7
For Ex zoneWithout
Thread typePG
Bend protectionno
With locknutno
Sealing insert, multipleno
Flat cable glandno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,5 mm
Nominal thread size7
Hexagonal corner dimension16,5 mm
Sealing area D, max.6,5 mm
Sealing area D, min.2,5 mm
WAF15
Version forStraight
Thread length15 mm
Unstable torque1,67 Nm
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
DimensionPG7
MaterialPolyamide
ColourLight grey; RAL 7035
CO2 Footprint (GWP) Cradle-to-Gate0,0307 kg CO2e / 1 Piece

Dimensions

Dimension L min.18 mm
Dimension L max.23 mm
Dimension L115 mm
Dimension L25 mm
Dimension L312,6 mm
Dimension E16,5 mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (2)

Variants

Thread
V-TEC L PG7 LGR
Item no.
2024284
Thread
Pg 7
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG9 LGR
Item no.
2024292
Thread
Pg 9
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG11 LGR
Item no.
2024306
Thread
Pg 11
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG13 LGR
Item no.
2024314
Thread
Pg 13,5
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG16 LGR
Item no.
2024322
Thread
Pg 16
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG21 LGR
Item no.
2024330
Thread
Pg 21
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG29 LGR
Item no.
2024349
Thread
Pg 29
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG36 LGR
Item no.
2024357
Thread
Pg 36
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
V-TEC L PG42 LGR
Item no.
2024365
Thread
Pg 42
Sealing insert, multiple
no
Colour
Light grey; RAL 7035
