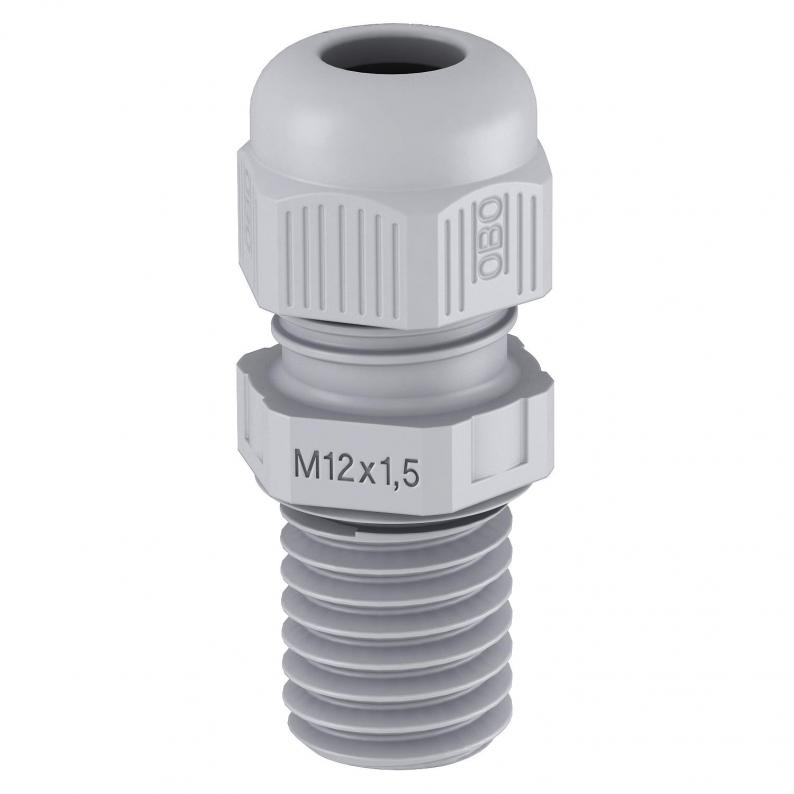

Cable gland, long metric thread, silver grey

Cable gland, long metric thread, silver grey

Type V-TEC VM L12 SGR | Item no. 2022921 | EAN 4012195003786

Show all variants
Item no. / Type
Thread
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001

Smallest selling unit: 50 piece

DescriptionTechnical dataDownloadsVariants

Description

Cable gland with metric connection thread in cap nut design, suitable for junction boxes, housings, distributor cabinets in private and industrial areas. With strain relief and integrated sealing lip, tested according to DIN EN 62444. Protection class IP68. Can be used between –20°C and +65°C.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Det Norske Veritas
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Flame resistant 650 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • Protection rating IP 68
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Impact-resistantno
Halogen-freeyes
Fibre-glass reinforcedno
explosion-proofno
Strain relief optionyes
Protection ratingIP68
ThreadM12 x 1,5
For Ex zoneWithout
Thread typeMetric
Bend protectionno
With locknutno
Sealing insert, multipleno
Flat cable glandno
Type of sealSealing ring
Splittable glandno
For Ex zone gasWithout
For Ex zone dustWithout
Thread increase1,5 mm
Nominal thread size12
Hexagonal corner dimension16,5 mm
Sealing area D, max.7 mm
Sealing area D, min.3,5 mm
WAF15
Version forStraight
Thread length15 mm
Unstable torque2 Nm
Permitted temperature range, max.65 °C
Permitted temperature range, min.-20 °C
Flame-resistantacc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
DimensionM12
MaterialPolyamide
ColourSilver grey; RAL 7001
CO2 Footprint (GWP) Cradle-to-Gate0,0256 kg CO₂e / 1 Piece

Dimensions

Dimension L min.17,5 mm
Dimension L max.24 mm
Dimension L115 mm
Dimension L25 mm
Dimension E16,5 mm

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (3)
Instructions and Aid (1)
Product images (2)
Tender specifications (2)

Variants

Thread
V-TEC VM L12 SGR
Item no.
2022921
Thread
M12 x 1,5
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC VM L16 SGR
Item no.
2022924
Thread
M16 x 1,5
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC VM L20 SGR
Item no.
2022926
Thread
M20 x 1,5
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC VM L25 SGR
Item no.
2022928
Thread
M25 x 1,5
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
V-TEC VM L32 SGR
Item no.
2022930
Thread
M32 x 1,5
Sealing insert, multiple
no
Colour
Silver grey; RAL 7001
