BKRS FT Z support
Type ZST 100 BKRS FT | Item no. 6044601 | EAN 4012196640669
Item no. / Type
6044601 / ZST 100 BKRS FT
Smallest selling unit: 25 piece
25piece
Description

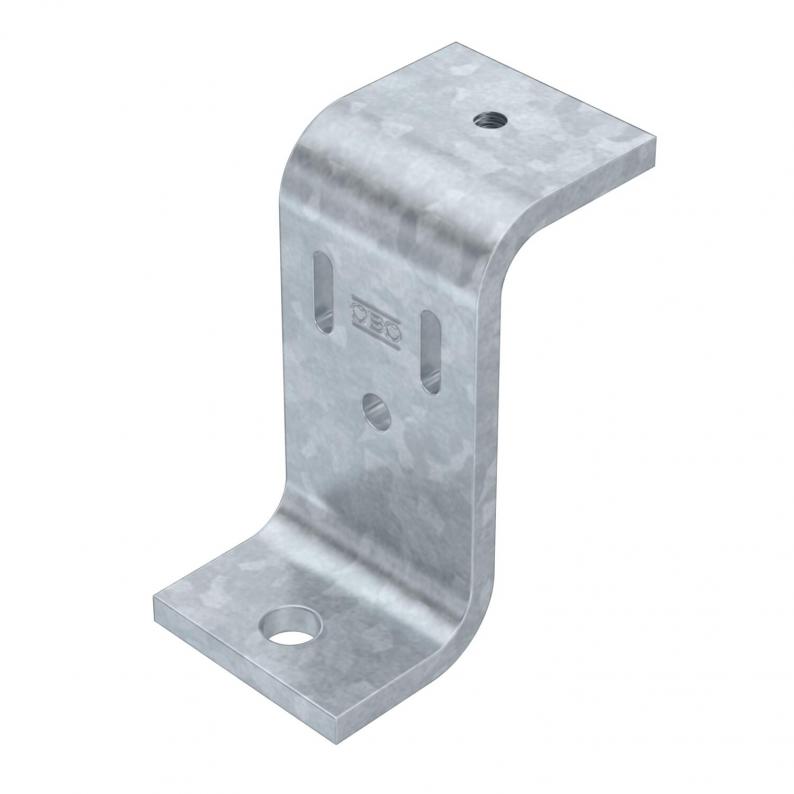

Z support as a stand-off of the walkable BKRS cable tray system on the floor. Fastening of the cable tray on the Z support with flat-head screw FKS 6 x 12 mm (item no. 6049246) with M6 threaded hole.
Technical data
Dimensions
| Length | 65 mm |
|---|---|
| Width | 40 mm |
| Height | 88 mm |
| Dimension B | 88 mm |
Technical data
| Rustproof steel, pickled | no |
|---|---|
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Version for | Miscellaneous |
| Tray fastening | Screw-on |
| Dimension | 65x40x88 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,4806 kg CO2e / 1 Piece |
