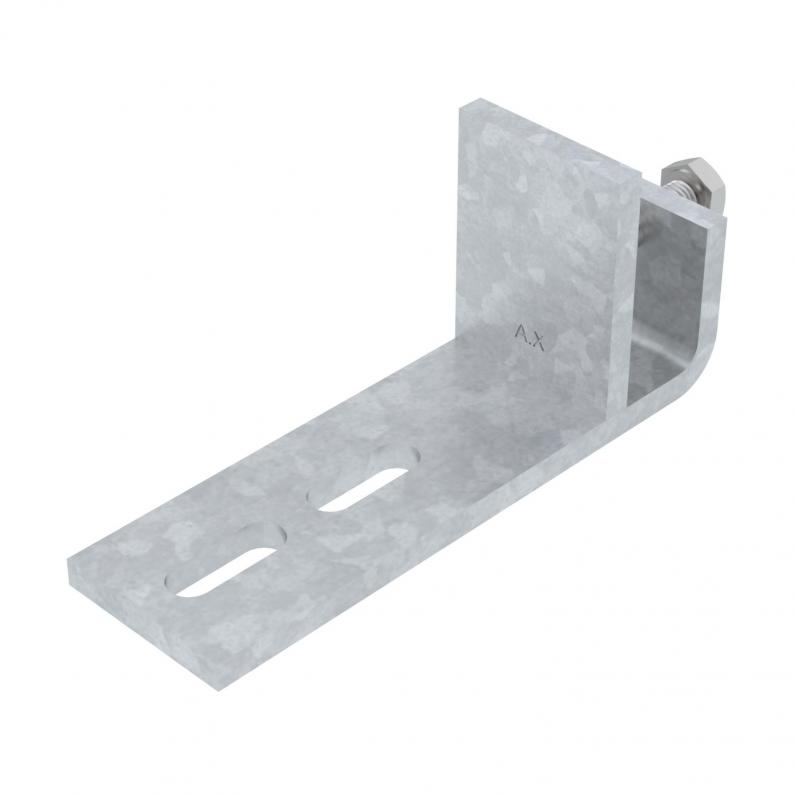

Beam clamp, vertical BFK 132 FT
Type BFK 132 58 FT | Item no. 6003880 | EAN 4012196079889
Item no. / Type
6003880 / BFK 132 58 FT
Smallest selling unit: 10 piece
10piece
Description
Beam clamp for clamping on the steel girder.
The cable support system attached to the beam clamp runs vertically.
Technical data
Dimensions
| Width | 132 mm |
|---|---|
| Height | 20 mm |
| Dimension B | 132 mm |
| Dimension b | 99 mm |
| Dimension B1 | 99 mm |
Technical data
| Suitable for profile shapes | C profile |
|---|---|
| Version for | Miscellaneous |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,9018 kg CO2e / 1 Piece |
