Adjustable connector FS
Type RGV 85 FS
|Item no. 7082029
|EAN 4012196230594
Item no. / Type
7082029 / RGV 85 FS
Colour
zinc
Smallest selling unit: 10 piece
10piece
piece
Description

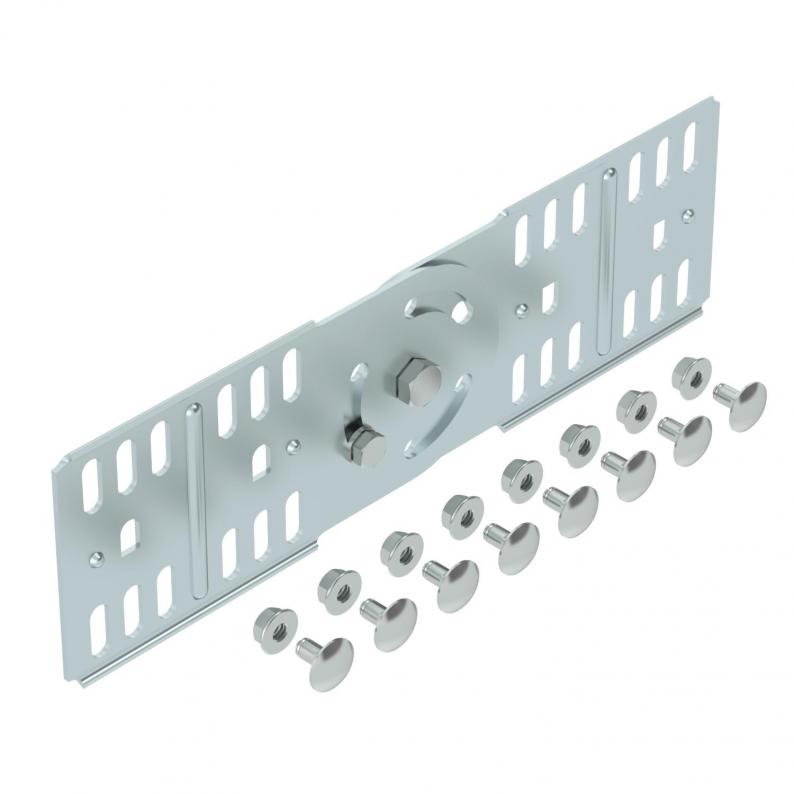

Adjustable connector for cable trays with a side height of 85 mm.
Including appropriate fastening material.
Technical data

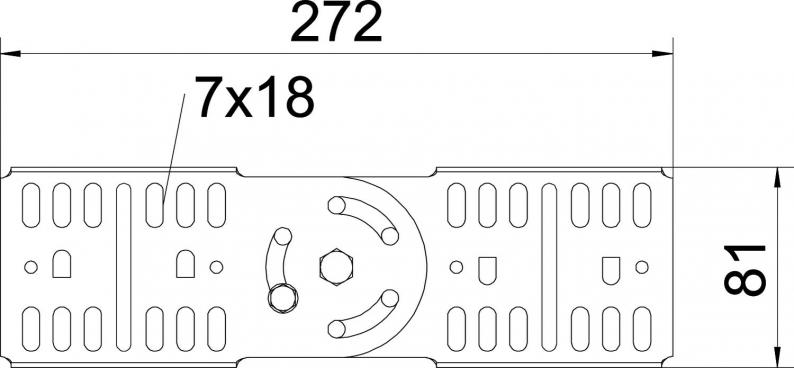

Dimensions
| Length | 272 mm |
|---|---|
| Width | 16 mm |
| Height | 85 mm |
Technical data
| CO2 Footprint (GWP) Cradle-to-Gate | 1,2285 kg CO2e / 1 Piece |
|---|---|
| Maintain electrical functions | no |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Dimension | 272 x 81 |
| Suitable for cable tray system height | 85 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 85x270 |
| Surface | Strip galvanized |
| Material | Steel |
| Colour | zinc |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (4)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Height
Plate thickness
Colour
Item no.
RGV 85 FS
85
2
zinc
7082029
RGV 85 FS
Item no.
7082029
Height
85
Plate thickness
2
Colour
zinc
