Adjustable connector 60 FT

Adjustable connector 60 FT

Type RGV 60 FT | Item no. 7082223 | EAN 4012196230778

Show all variants
Item no. / Type
7082223 / RGV 60 FT
Colour
zinc

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

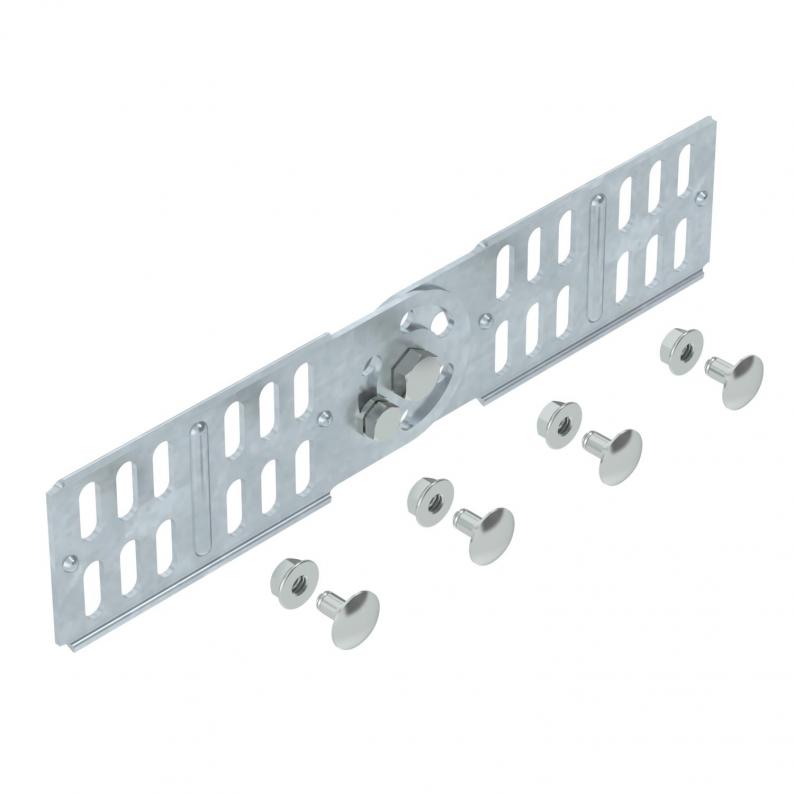

Adjustable connector for cable trays with a side height of 60 mm.

Including appropriate fastening material.

  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length254 mm
Width16 mm
Height60 mm

Technical data

Maintain electrical functionsno
Plate thickness2 mm
Suitable for mesh cable trayno
Suitable for cable ladderno
Suitable for cable trayyes
Adjustable connector, horizontalno
Articulated connector, verticalyes
Dimension254 x 56
Suitable for cable tray system height60 mm
Version forStraight connector
Connection typeScrew connector
Dimension60x260
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
CO2 Footprint (GWP) Cradle-to-Gate0,7109 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (6)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

RGV 60 FT
Item no.
7082223
Height
60
Plate thickness
2
Colour
zinc
