Adjustable connector 160 A4
Type WRGV 160 A4 | Item no. 6227967 | EAN 4012196802258
Item no. / Type
6227967 / WRGV 160 A4
Smallest selling unit: 2 piece
2piece
Description

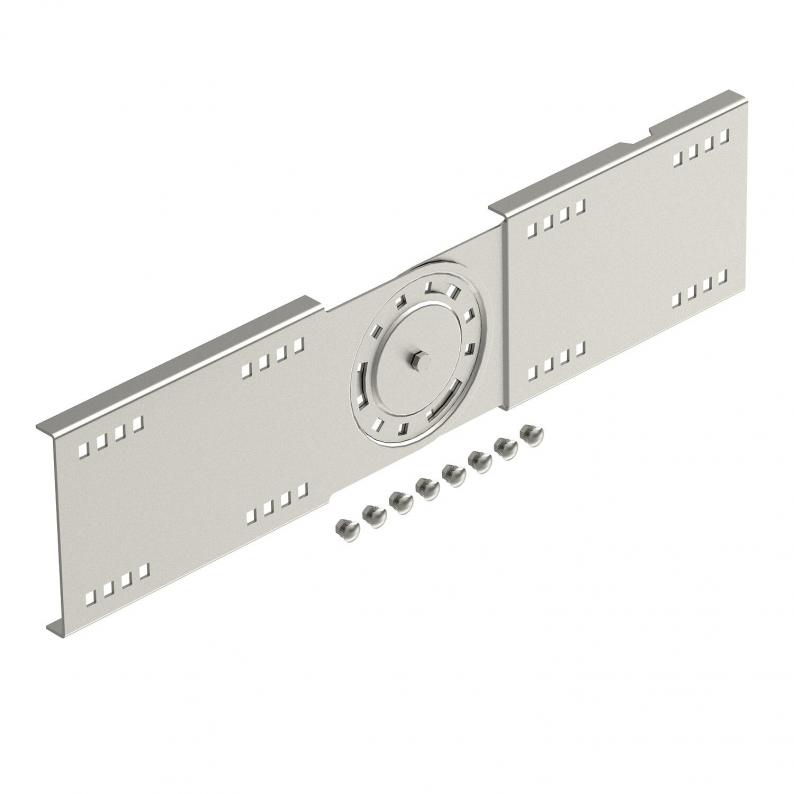

Adjustable connector for wide span cable trays and ladders with a side height of 160 mm.
Including appropriate bolts, washers and nuts.
Technical data
Dimensions
| Length | 680 mm |
|---|---|
| Width | 20 mm |
| Height | 160 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Rustproof steel, pickled | no |
| Plate thickness | 2,5 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | yes |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Suitable for cable tray system height | 160 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 160x680 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4571 |
| Colour | stainless steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 18,465 kg CO2e / 1 Piece |
