Adjustable connector 110 FT
Type RGV 110 FT | Item no. 7082436 | EAN 4012196230952
Item no. / Type
7082436 / RGV 110 FT
Colour
zinc
Smallest selling unit: 10 piece
10piece
Description

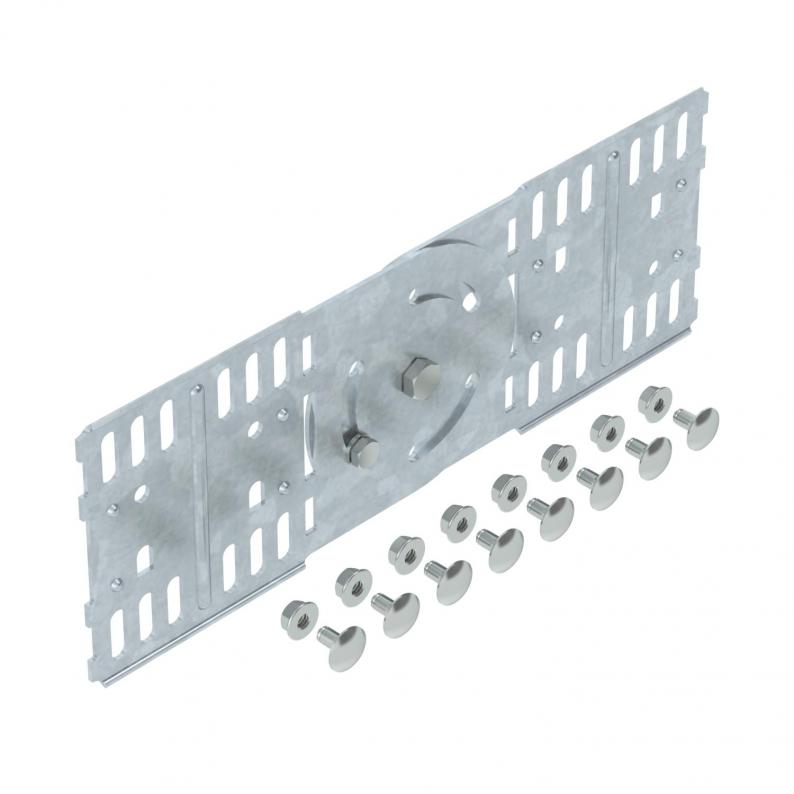

Adjustable connector for cable trays with a side height of 110 mm.
Including appropriate fastening material.
Technical data

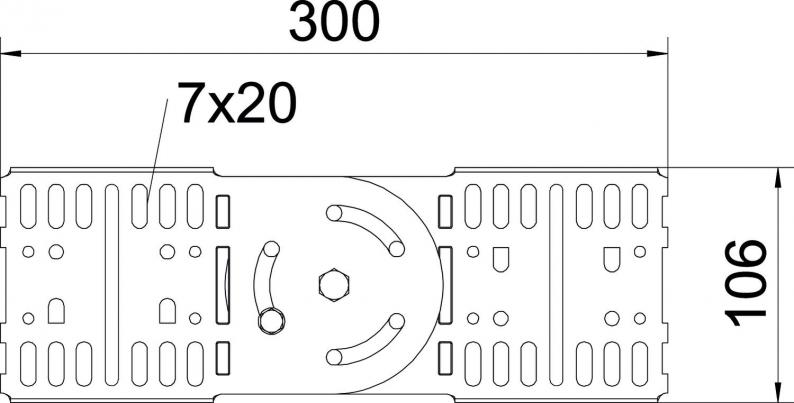

Dimensions
| Length | 300 mm |
|---|---|
| Width | 16 mm |
| Height | 110 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 2 mm |
| Suitable for mesh cable tray | no |
| Suitable for cable ladder | no |
| Suitable for cable tray | yes |
| Adjustable connector, horizontal | no |
| Articulated connector, vertical | yes |
| Dimension | 300 x 106 |
| Suitable for cable tray system height | 110 mm |
| Version for | Straight connector |
| Connection type | Screw connector |
| Dimension | 110x300 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,6443 kg CO2e / 1 Piece |
