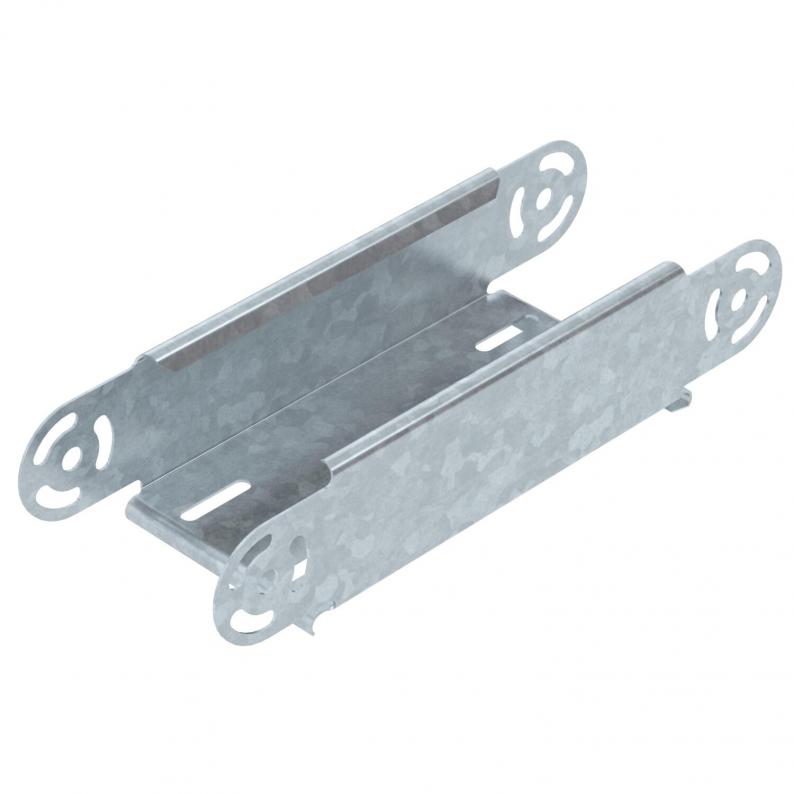

Adjustable bend element, vertical 60 FT

Adjustable bend element, vertical 60 FT

Type RGBEV 610 FT | Item no. 7075103 | EAN 4012196228072

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Adjustable vertical bend element, for all cable tray types with a side height of 60 mm.

RGV 60 adjustable connectors should be ordered separately and in the appropriate quantity.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)

Technical data

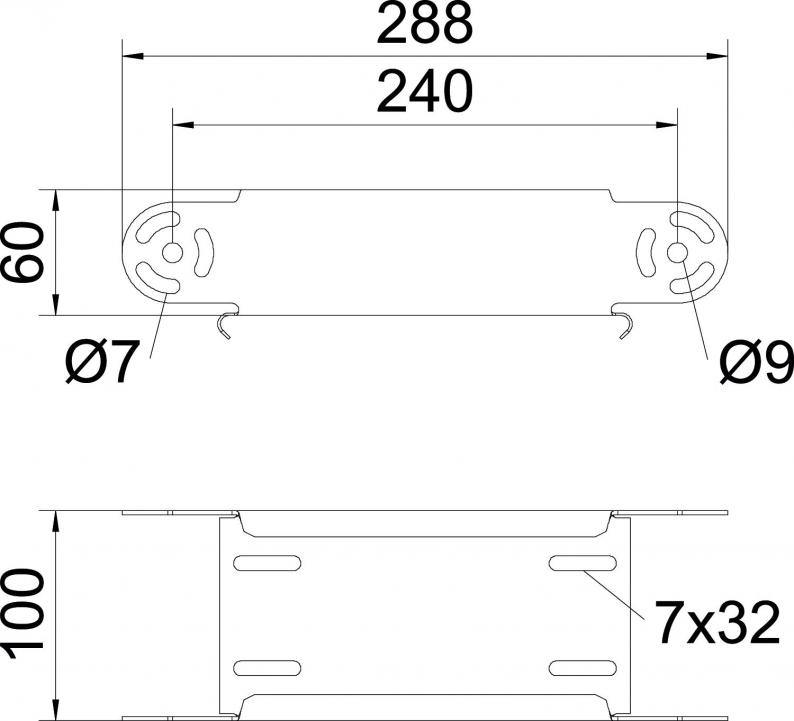

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsno
Side perforationno
Connector versionWithout connectors
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)Adjustable
Change of directionVertical, rising/falling
TypeAdjustable bend element
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemScrewed
CO2 Footprint (GWP) Cradle-to-Gate1,6933 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

Width
RGBEV 610 FT
Item no.
7075103
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBEV 620 FT
Item no.
7075200
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBEV 630 FT
Item no.
7075308
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBEV 640 FT
Item no.
7075405
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBEV 650 FT
Item no.
7075502
Width
500
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RGBEV 660 FT
Item no.
7075596
Width
600
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
