Add-on tee 85 FS
Type RAA 810 FS | Item no. 7002475 | EAN 4012196819614
Item no. / Type
Width
This item is a discontinued product!
Smallest selling unit: 1 piece
1piece
Description

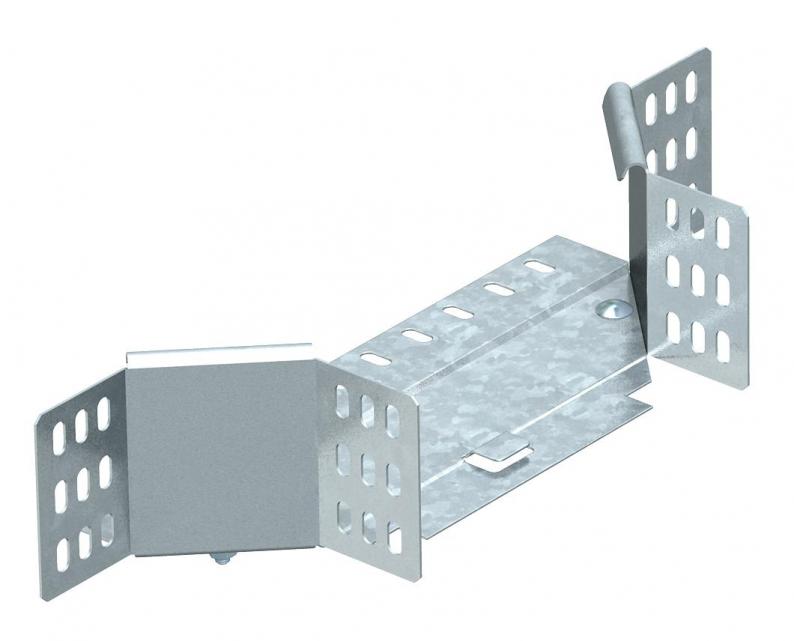

Add-on tee for horizontal and vertical use. For all cable tray types of 85 mm side height.
The fitting is shipped in an unmounted state.
Including appropriate fastening material.
Technical data

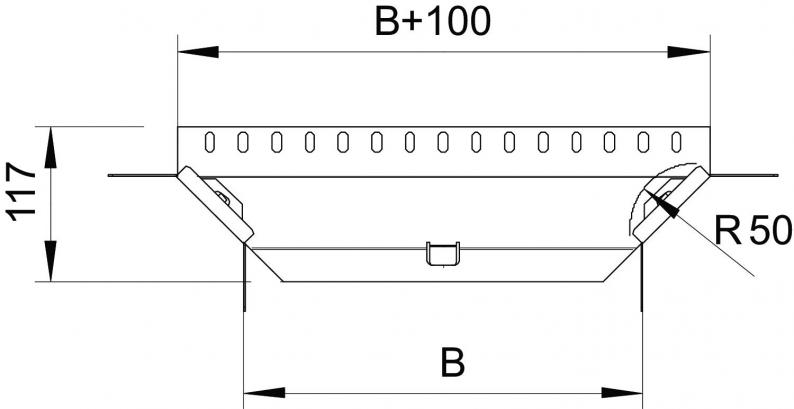

Dimensions
| Width | 100 mm |
|---|---|
| Height | 85 mm |
| Dimension B | 100 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Material thickness, floor plate | 1 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Rail thickness | 1,25 mm |
| Dimension | 85x100 |
| Surface | Strip galvanized |
| Material | Steel |
| Type of connector, cable support system | Screwed |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (2)
Declarations (3)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Variants
Type
Width
Colour
Item no.
RAA 810 FS
100
7002475
RAA 820 FS
200
zinc
7002491
RAA 830 FS
300
7002513
Width
RAA 810 FS
Item no.
7002475
Width
100
RAA 820 FS
Item no.
7002491
Width
200
Colour
zinc
RAA 830 FS
Item no.
7002513
Width
300
