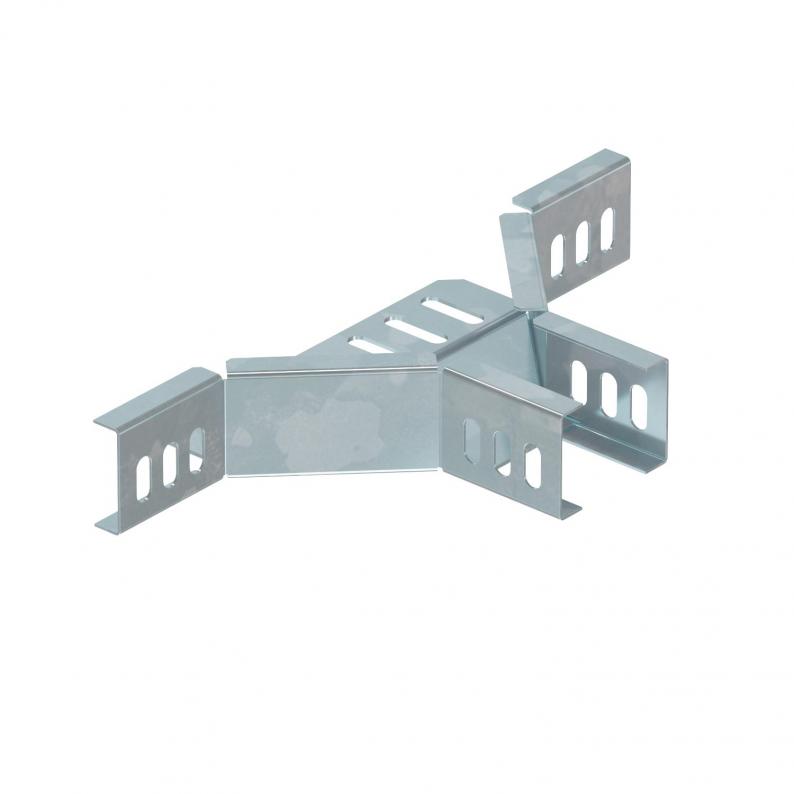

Add-on tee 35 FT
Type RAA 305 FT | Item no. 7120458 | EAN 4012196688654
Item no. / Type
7120458 / RAA 305 FT
Colour
zinc
Smallest selling unit: 1 piece
1piece
Description
Add-on tee for the horizontal routing of cable trays, type RKS 305.
Technical data

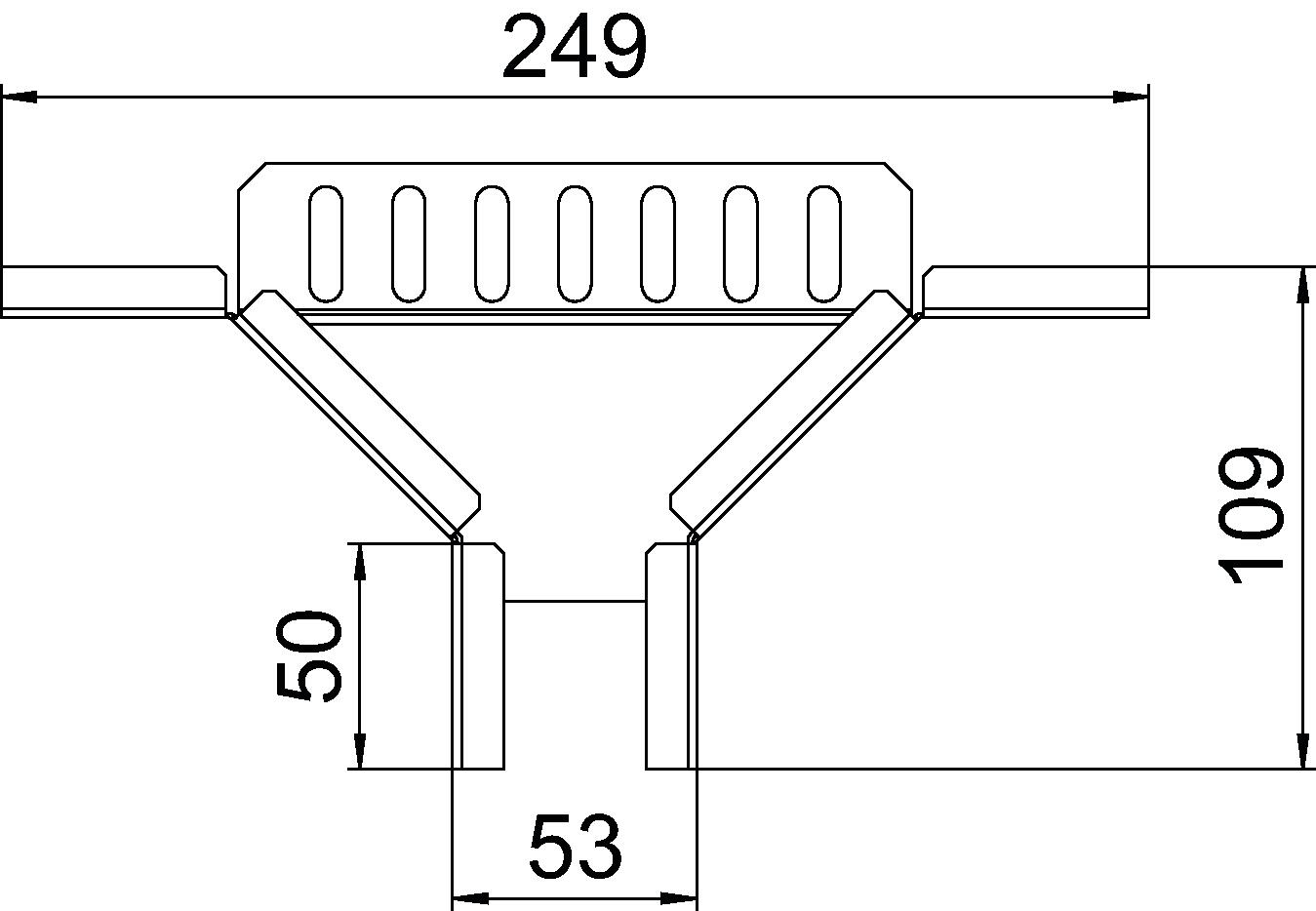

Dimensions
| Width | 50 mm |
|---|---|
| Height | 35 mm |
| Dimension B | 50 mm |
| Dimension R | 50 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Supplied connectors |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| NATO hole pattern | no |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Departing width | 50 mm |
| Dimension | 35x50 |
| Surface | Hot-dip galvanised |
| Material | Steel |
| Colour | zinc |
| Type of connector, cable support system | Screwed |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,0095 kg CO2e / 1 Piece |
