Accessory mounting box, double
Type 71GD7
|Item no. 6288611
|EAN 4012195148685
Item no. / Type
6288611 / 71GD7
Number of units
2
Accessory mounting type
Lock
This item is a discontinued product!
You can find the successor product here.
Smallest selling unit: 2 piece
2piece
piece
Description

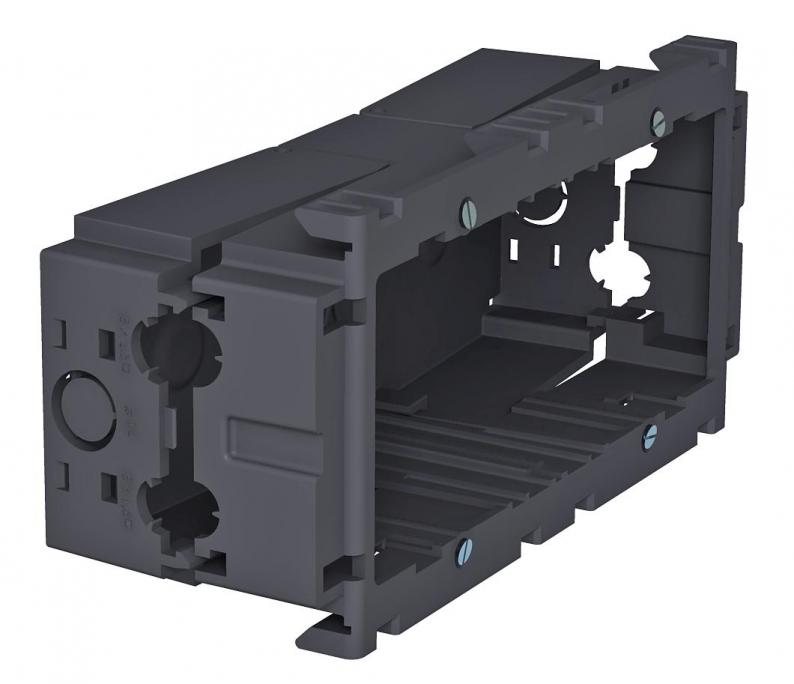

Front locking accessory mounting box for standard switch ranges for the installation of two individual installation devices or a multiple protective contact socket. With unfolding, and also removable, base for time-saving cable connection and with feed openings for cable diameters of up to 14 mm. Halogen-free version.
Vertical fixing track 60 mm.
Technical data
Technical data
| Halogen-free | yes |
|---|---|
| Number of units | 2 |
| Strain relief option | no |
| With connection compartment | yes |
| Fastening track | Other |
| Box mounting type | Front |
| Accessory mounting type | Lock |
| Device type | With support ring/support clamp |
| Version for | Closed |

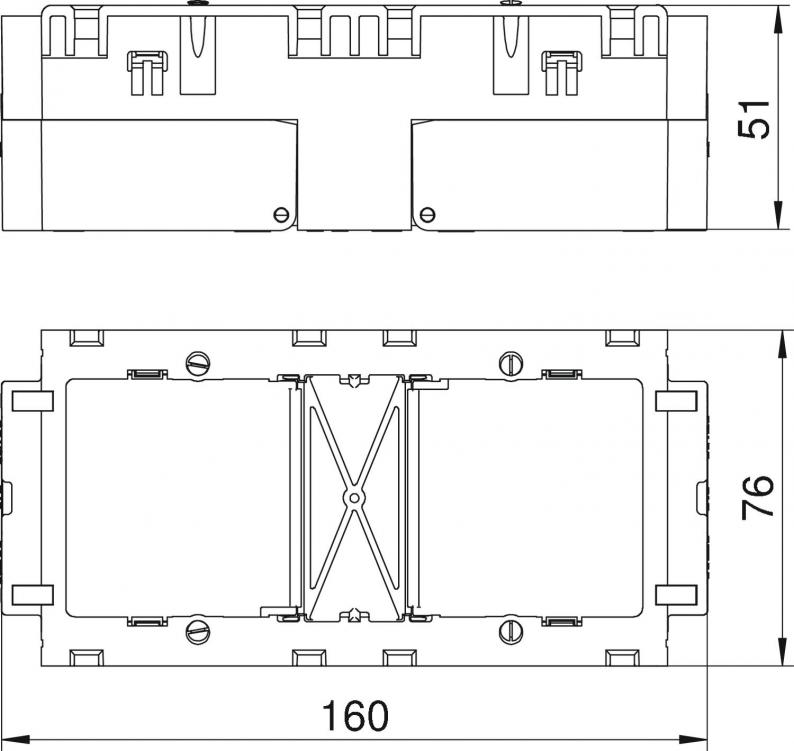

| Dimension | 160x76x51 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
Environmental Data
0,398 kg CO₂e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,398 kg CO₂e / 1 Piece |
|---|
