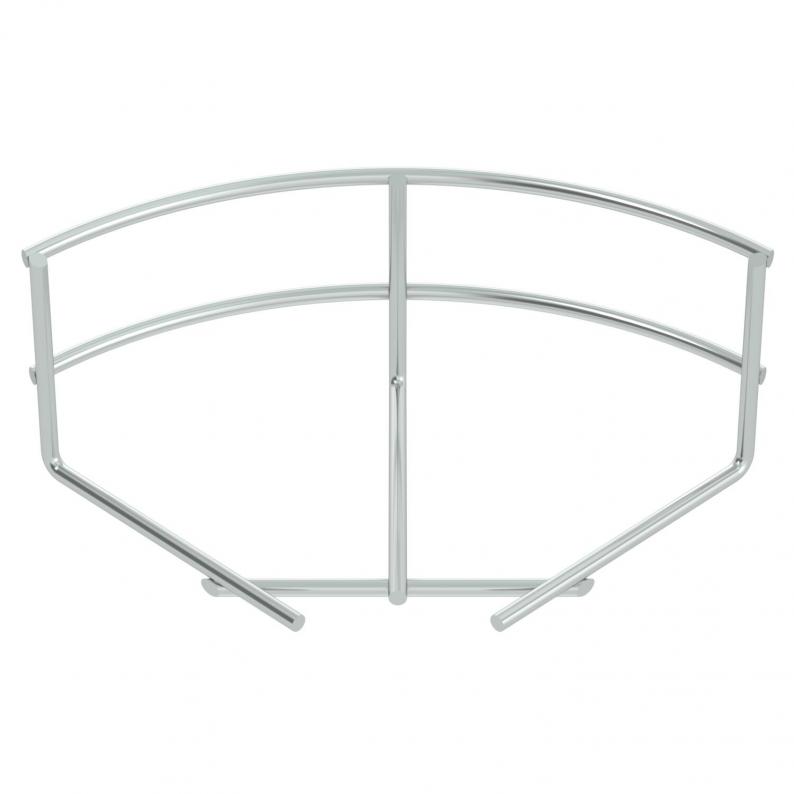

90° mesh cable tray bend G
Type GRB 90 510 G
|Item no. 6001920
|EAN 4012196352630
Item no. / Type
6001920 / GRB 90 510 G
Width
100 mm
Maintain electrical functions
no
Wire diameter
3,9 mm
Smallest selling unit: 1 piece
1piece
piece
Description
90° bend, horizontal, for all mesh cable trays of 55 mm side height.
Technical data
Dimensions
| Width | 100 mm |
|---|---|
| Height | 55 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Connector version | Without connectors |
| Rustproof steel, pickled | no |
| Bend (angle) | 90° |
| Wire diameter | 3,9 mm |
| Dimension | 55x100 |
| Surface | Electrogalvanised |
| Material | Steel |
| Colour | zinc |
Environmental Data
0,2462 kg CO2e / 1 PieceCO2 Footprint (GWP) Cradle-to-Gate
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2462 kg CO2e / 1 Piece |
|---|---|
| CO₂ Footprint (GWP) | 0,2462 kg CO₂e |
| Determination date of CO2 value | 2025-05-21T00:00:00.000+0200 |
| Declared Unit (LCA) | Units |
| Declared Unit Quantity (LCA) | 1 |
