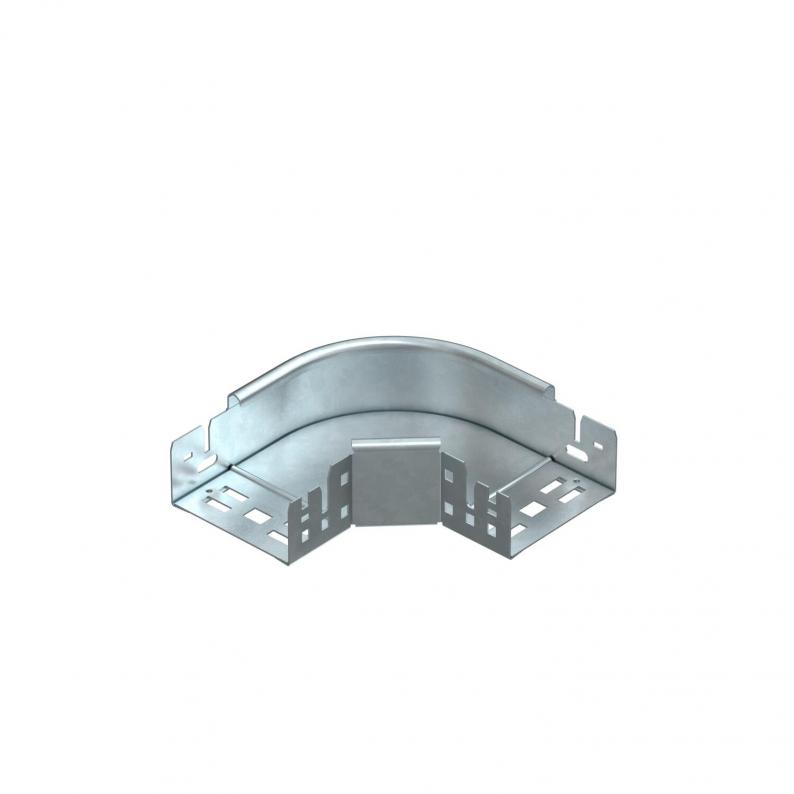

90° Magic bend 60 FT

90° Magic bend 60 FT

Type RBM 90 610 FT | Item no. 6041150 | EAN 4012195881889

Show all variants
Item no. / Type
Width
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

90° bend with quick connector system. For all cable tray types of 60 mm side height.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 60 mm
  • BET-tested to DIN EN 61537
  • CO₂ footprint (PCF)

Technical data

Dimensions

Width100 mm
Height60 mm
Dimension B100 mm

Technical data

Maintain electrical functionsyes
Side perforationno
Connector versionIntegrated connector
Wide-span versionno
Rustproof steel, pickledno
Plate thickness1,25 mm
Mounting perforation in baseno
NATO hole patternno
Bend (angle)90°
Change of directionHorizontal
TypeBend, rigid
Dimension60x100
SurfaceHot-dip galvanised
MaterialSteel
Colourzinc
Type of connector, cable support systemClick fastening
CO2 Footprint (GWP) Cradle-to-Gate2,0772 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (4)
Declarations (3)
Instructions and Aid (1)
Product images (2)
3D data downloads (2)
Tender specifications (2)

Variants

Width
RBM 90 610 FT
Item no.
6041150
Width
100
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBM 90 615 FT
Item no.
6041152
Width
150
Surface
Hot-dip galvanised
Material
Steel
RBM 90 620 FT
Item no.
6041154
Width
200
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBM 90 630 FT
Item no.
6041156
Width
300
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
RBM 90 640 FT
Item no.
6041158
Width
400
Surface
Hot-dip galvanised
Material
Steel
Colour
zinc
