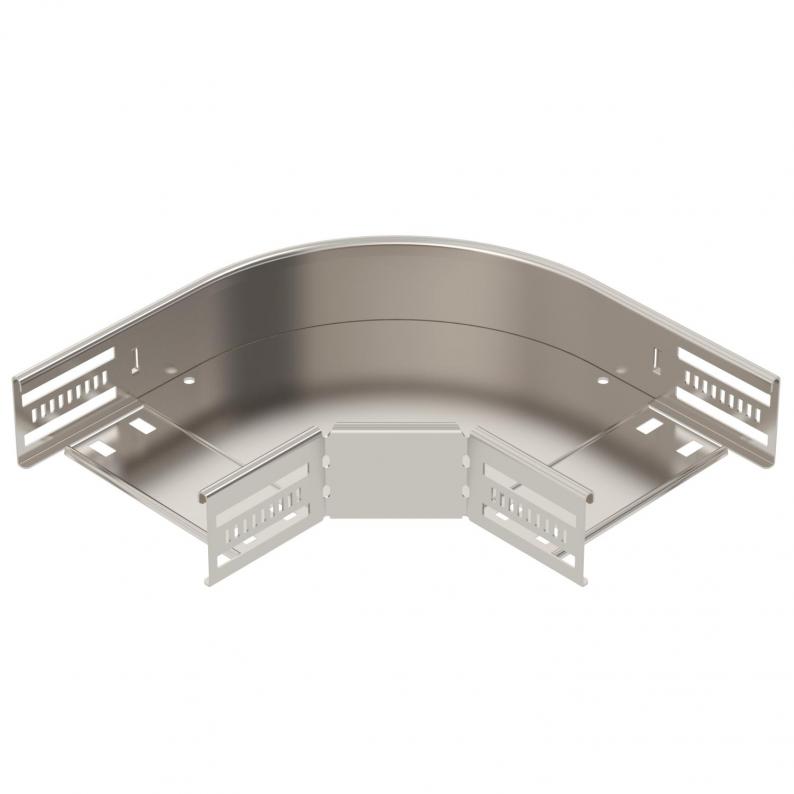

90° bend 60 A2
Type RB 90 615 A2 | Item no. 6036622 | EAN 4012197343989
Item no. / Type
Width
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
Smallest selling unit: 1 piece
1piece
Description
90° bend for the creation of a horizontal branch, fitting for lock and screw-on cable trays of side height 60 mm. Screwless mounting with double clamps or screw connection with FRS truss-head screws and M6 combination nuts. Can be used indoors and outdoors. Fastening material must be ordered separately.
Technical data
Dimensions
| Width | 150 mm |
|---|---|
| Height | 60 mm |
| Dimension B | 150 mm |
Technical data
| Maintain electrical functions | yes |
|---|---|
| Side perforation | yes |
| Connector version | Integrated connector |
| Wide-span version | no |
| Rustproof steel, pickled | no |
| Plate thickness | 0,8 mm |
| Mounting perforation in base | yes |
| NATO hole pattern | no |
| Material thickness, floor plate | 0,8 mm |
| Bend (angle) | 90° |
| Change of direction | Horizontal |
| Type | Bend, rigid |
| Rail thickness | 1,25 mm |
| Permitted temperature range, min. | -20 °C |
| Permitted temperature range, max. | 120 °C |
| Dimension | 60x150 |
| Surface | Bright, treated |
| Material | Stainless steel 1.4301 |
| Colour | stainless steel |
| Type of connector, cable support system | screwed/clamped |
| Recommended quantity of bolts | 10 St. |
| CO2 Footprint (GWP) Cradle-to-Gate | 6,519 kg CO2e / 1 Piece |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (3)
Declarations (4)
Instructions and Aid (3)
Product images (2)
3D data downloads (1)
Tender specifications (2)
Accessories
System accessories
Mounting accessories
Article
Type
Item no.
Amount
Variants
Type
Width
Surface
Material
Colour
Item no.
RB 90 610 A2
100
Bright, treated
Stainless steel 1.4301
stainless steel
6036620
RB 90 615 A2
150
Bright, treated
Stainless steel 1.4301
stainless steel
6036622
Width
RB 90 610 A2
Item no.
6036620
Width
100
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
RB 90 615 A2
Item no.
6036622
Width
150
Surface
Bright, treated
Material
Stainless steel 1.4301
Colour
stainless steel
