ZESR9 inspection cover
Type ZESR9-2 U12T7011
|Item no. 7406805
|EAN 4012195894063
Item no. / Type
Floor covering thickness
Colour
Floor covering thickness max.
Nominal size for device installation units
R9
Smallest selling unit: 1 piece
1piece
piece
Description

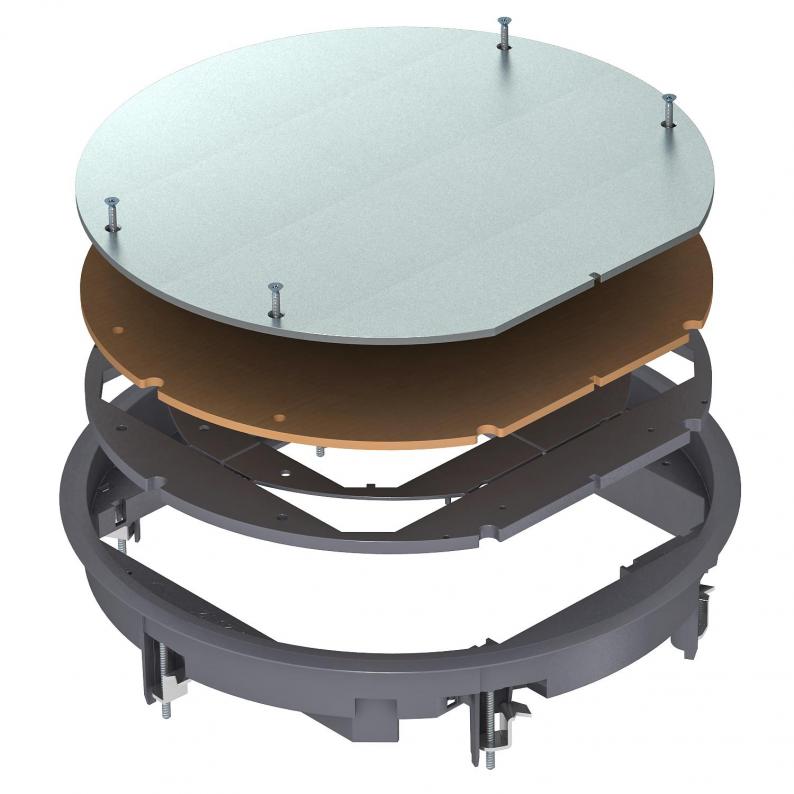

Junction box insert for blank closing of a round mounting opening of nominal size R9 in trunking systems and in raised and cavity floors for indoor use. With universal fixing bracket.
Polyamide carpet protection frame.
Floor covering recess 12 mm.
Polyamide carpet protection frame.
Floor covering recess 12 mm.
Technical data

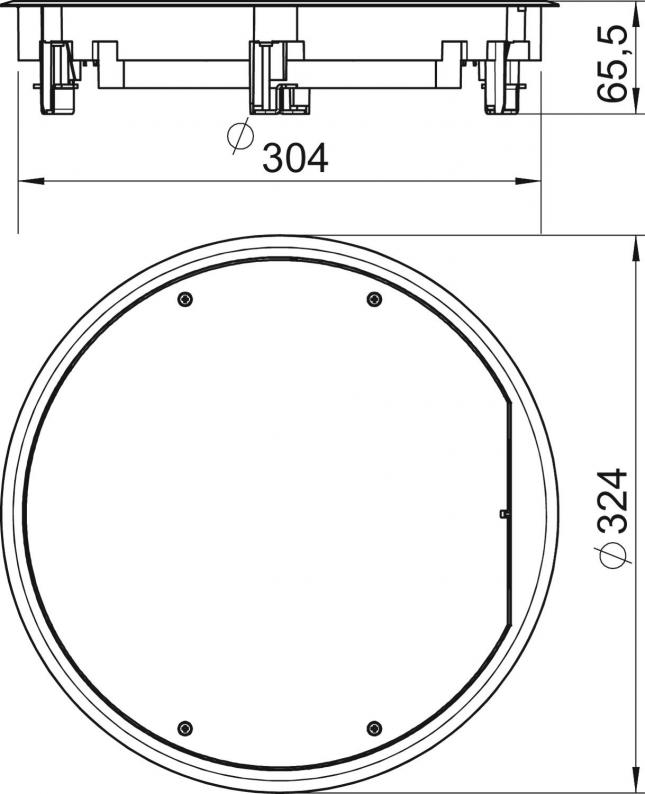

Dimensions
| Length | 324 mm |
|---|---|
| Width | 324 mm |
| Height | 65,5 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Floor height, min. | 63 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Suitable for screed-covered underfloor ducts | yes |
| Number of installable devices | 0 |
| Installation diameter | 304 |
| Suitable for underfloor ducts | yes |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Frame version | Carpet protection frame |
| Suitable for wet care | no |
| Installation depth | 63 mm |
| External diameter | 324 mm |
| Nominal size for device installation units | R9 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Round |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 75 mm |
| Dimension | Ø324X65,5 |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| Floor covering thickness max. | 12 mm |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 8,5689 kg CO2e / 1 Piece |
|---|
