ZES4 inspection cover
Type ZES4-2 U10T 7011
|Item no. 7406701
|EAN 4012195903277
Item no. / Type
Floor covering thickness
Colour
Floor covering thickness max.
Nominal size for device installation units
4
Smallest selling unit: 1 piece
1piece
piece
Description

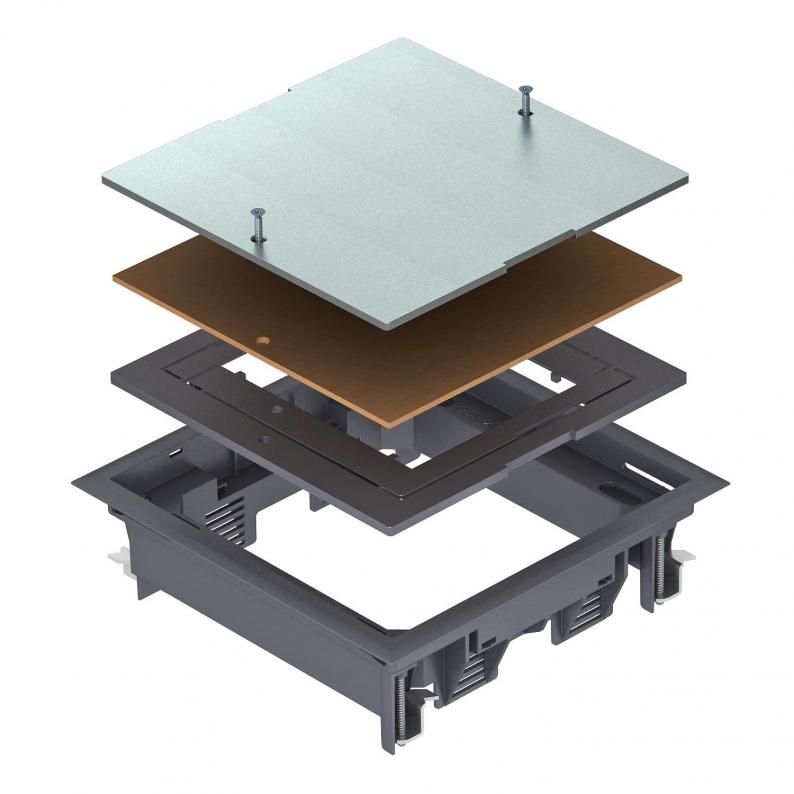

Junction box insert for blanking locking of a square mounting opening of nominal size 4 in duct or trunking systems and system floors for indoor use.
Floor covering recess is set to 5 mm on delivery, if necessary adjustable to 3, 8 or 10 mm.
Floor covering recess is set to 5 mm on delivery, if necessary adjustable to 3, 8 or 10 mm.
Technical data

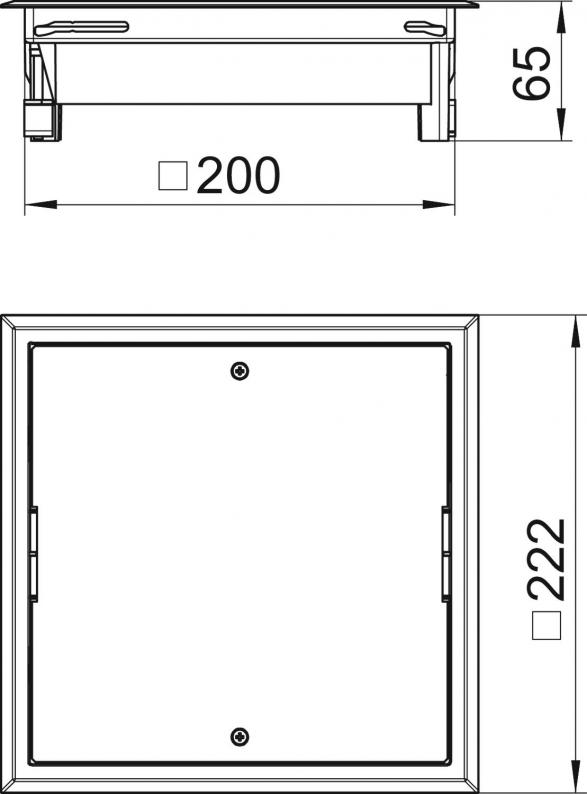

Dimensions
| Length | 222 mm |
|---|---|
| Width | 222 mm |
| Height | 65 mm |
Materials and Packaging
| Packaging made completely from recycled cardboard. | yes |
|---|---|
| Packaging without plastic | yes |
Technical data
| Floor height, min. | 62 mm |
|---|---|
| Floor covering thickness | 5 mm |
| Number of installable devices | 0 |
| Length of installation dimensions | 201 mm |
| Wide installation dimensions | 201 mm |
| Length of external dimensions | 222 mm |
| Wide external dimensions | 222 mm |
| Suitable for cavity floor installation | yes |
| Suitable for raised floor installation | yes |
| Floor care | Dry |
| Suitable for wet care | no |
| Installation depth | 62 mm |
| Floor covering protection frame | yes |
| Nominal size for device installation units | 4 |
| Vertical load, small area | to 3,000 N |
| Vertical load, large area | to 5,000 N |
| Version for | Square |
| Clamping range D, min. | 8 mm |
| Clamping range D, max. | 75 mm |
| Material | Polyamide |
| Colour | Iron grey; RAL 7011 |
| Floor covering thickness max. | 10 mm |
CO2 footprint (Product Carbon Footprint)
| CO2 Footprint (GWP) Cradle-to-Gate | 4,8321 kg CO2e / 1 Piece |
|---|
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Certificates (1)
Product images (2)
3D data downloads (2)
Tender specifications (1)
Variants
Type
Floor covering thickness
Nominal size for device installation units
Colour
Floor covering thickness max.
Item no.
ZES4-2 U10T 7011
5
4
Iron grey; RAL 7011
10
7406701
ZES4-2 U10T 9011
5
4
Graphite black; RAL 9011
10
7406702
Colour
ZES4-2 U10T 7011
Item no.
7406701
Floor covering thickness
5
Nominal size for device installation units
4
Colour
Iron grey; RAL 7011
Floor covering thickness max.
10
ZES4-2 U10T 9011
Item no.
7406702
Floor covering thickness
5
Nominal size for device installation units
4
Colour
Graphite black; RAL 9011
Floor covering thickness max.
10
