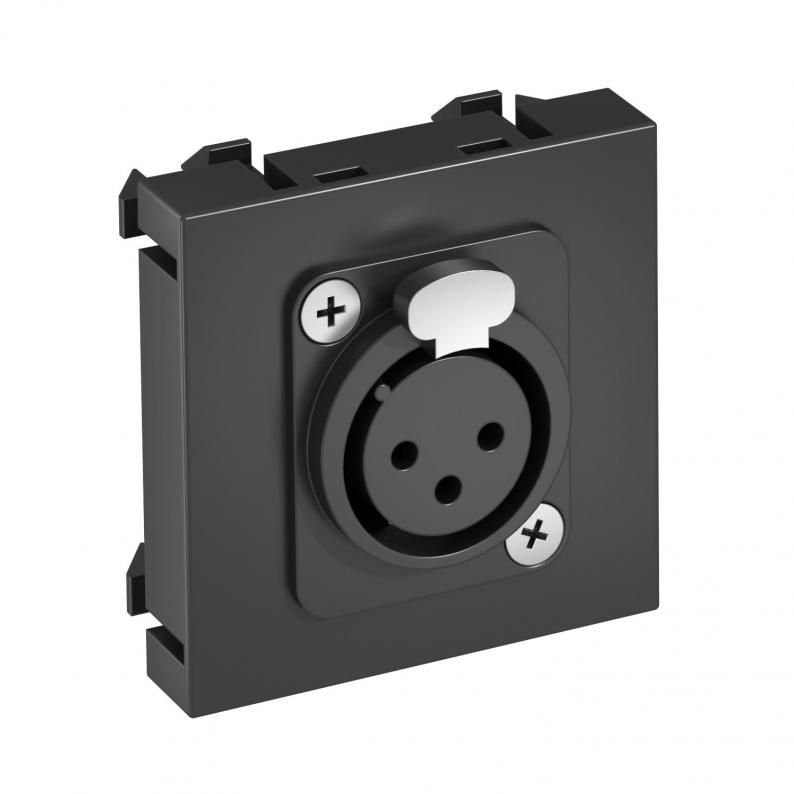

XLR connection, 1 module, straight outlet, 3-pin socket, as soldered connection, black-grey
Type MTG-X3F L SWGR1 | Item no. 6105213 | EAN 4012195899877
Item no. / Type
6105213 / MTG-X3F L SWGR1
Use
XLR
Colour
Black-grey; RAL 7021
Outlet direction
Straight
Smallest selling unit: 1 piece
1piece
Description
Multimedia support with one XLR connection socket, straight cable outlet, without labelling panel, 3-pin XLR socket with soldered connection. Support plate with locking fastening, suitable for horizontal and vertical installation in the system environment.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data

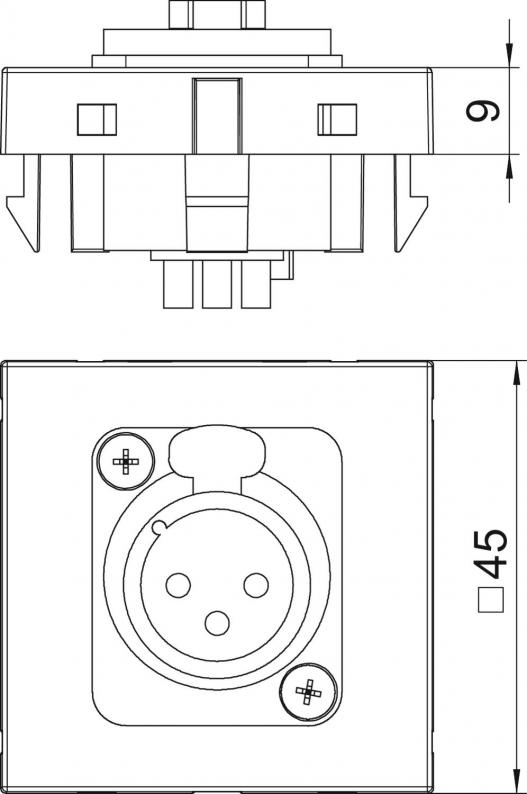

Dimensions
| Width | 45 mm |
|---|---|
| Height | 45 mm |
Technical data
| Hinged cover | no |
|---|---|
| Halogen-free | yes |
| Strain relief option | no |
| Protection rating | IP20 |
| Support ring | no |
| With dust protection | no |
| With printed label | no |
| Lamp-wire connector | no |
| Depth | 9 mm |
| Surface version | Matt |
| Transparent | no |
| Combination | Basic element with central cover plate |
| Use | XLR |
| Labelling panel | With labelling panel |
| Fastening type | Lock |
| Dimension | 45x45mm |
| Material | Polycarbonate |
| Colour | Black-grey; RAL 7021 |
| Outlet direction | Straight |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1555 kg CO2e / 1 Piece |
