Wiring trunking, type LK4 N 80040
Type LK4 N 80040 | Item no. 6178227 | EAN 4012196005932
Item no. / Type
6178227 / LK4 N 80040
Fastening type
Base perforation
Colour
Stone grey; RAL 7030
Smallest selling unit: 2 m
2m
Description

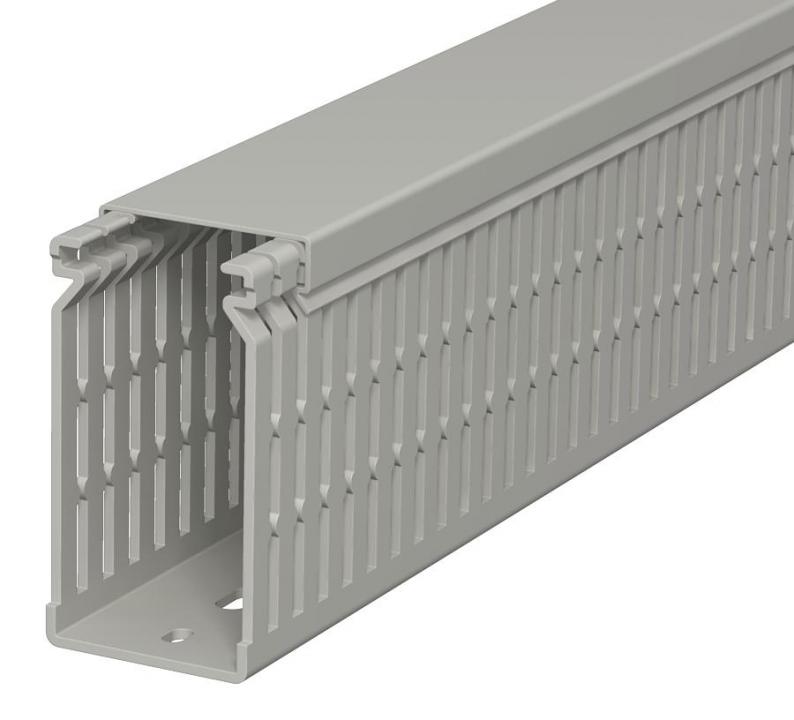

Wiring duct, incl. cover and base perforation, for horizontal and vertical routing of electrical cables in the switchgear cabinet. Designed as a metric duct. The nominal dimension of the system size corresponds to the internal dimension of the duct. Retainers are broken out without tools. The flush-floor routing of cables is possible through predetermined break points. Tapering in the side slots prevents the cables from falling out. Tested to DIN EN 50085-2-3. Special lengths on request.
Technical data
Dimensions
| Length | 2000 mm |
|---|---|
| Width | 40 mm |
| Height | 80 mm |
Technical data
| Usable cross-section | 30,54 cm² |
|---|---|
| Diameter | 0 mm |
| Halogen-free | no |
| Self-extinguishing | yes |
| Side wall version | Slotted |
| Creepage current-resistant | yes |
| Flexible | no |
| With cover | yes |
| Slot spacing | 12,5 mm |
| Slot width | 5 mm |
| Fastening type | Base perforation |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 80x40x2000 |
| Material | Polyvinylchloride |
| Colour | Stone grey; RAL 7030 |
| CO2 Footprint (GWP) Cradle-to-Gate | 1,7162 kg CO2e / 1 Meter |
