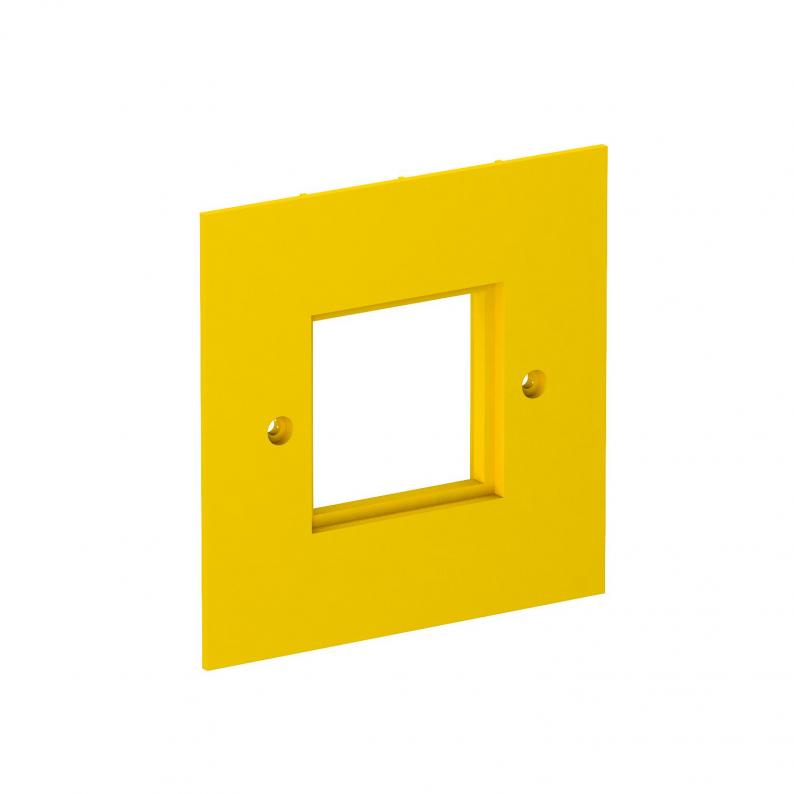

VH cover plate, for Modul 45 devices, single

VH cover plate, for Modul 45 devices, single

Type VH-P4 | Item no. 6109840 | EAN 4012195125327

Show all variants
Item no. / Type
6109840 / VH-P4

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Cover plate, for Modul 45 devices, single.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

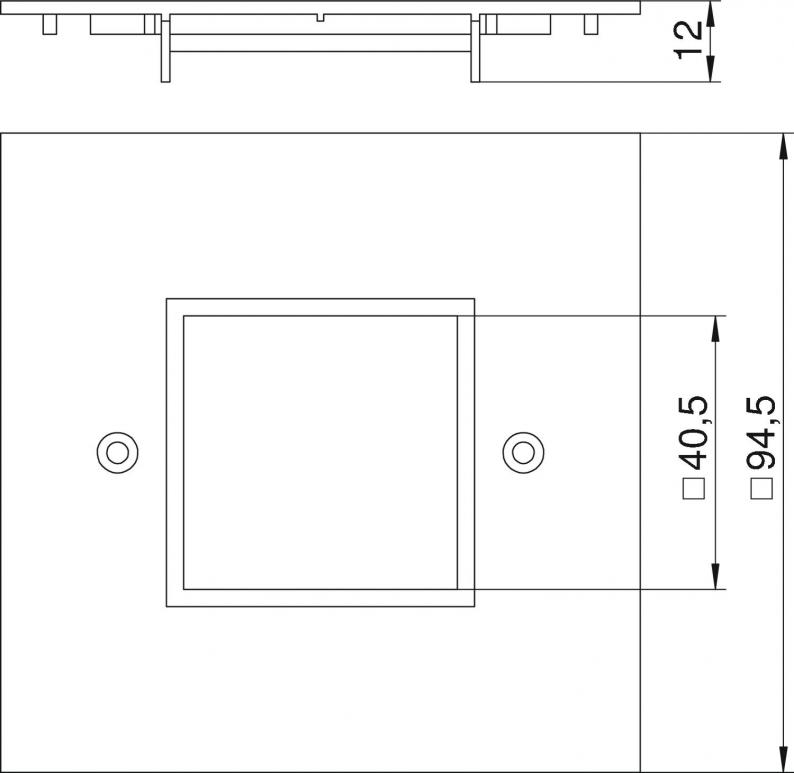

Dimensions

Width94,5 mm
Height94,5 mm

Technical data

Halogen-freeyes
Number of units1
Protection ratingIP20
Blanking lidno
Installation technologyGrid M45
Fastening typeScrew-on
Opening shapeRectangular
Dimension95x95mm
MaterialPolyamide
ColourRape yellow; RAL 1021
CO2 Footprint (GWP) Cradle-to-Gate0,0985 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

VH-P4
Item no.
6109840
