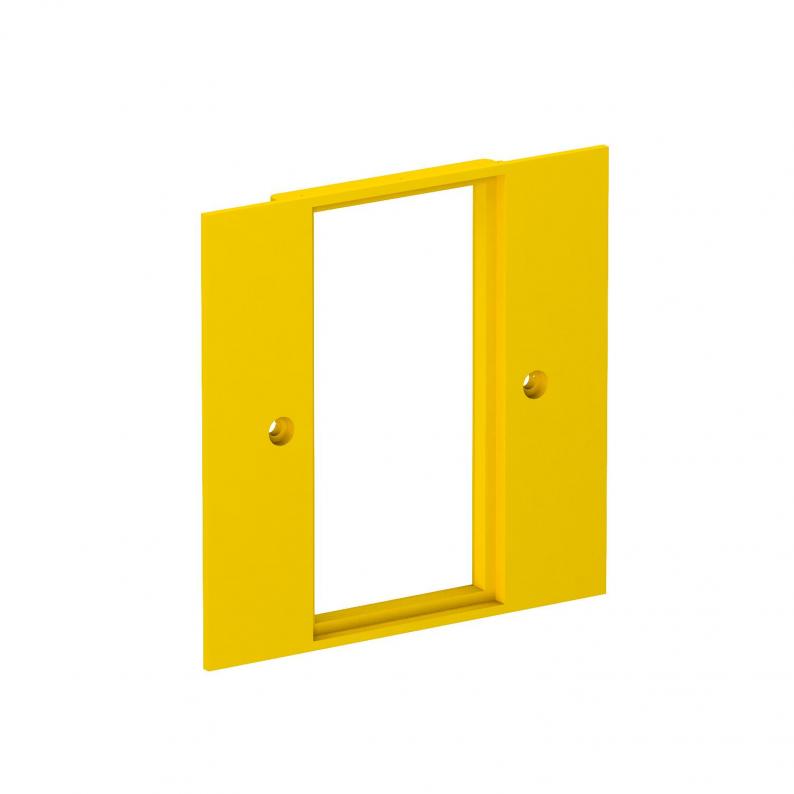

VH cover plate, for Modul 45 devices, double

VH cover plate, for Modul 45 devices, double

Type VH-P5 | Item no. 6109836 | EAN 4012195125280

Show all variants
Item no. / Type
6109836 / VH-P5

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Cover plate to install a double Modul 45 socket or equipable with two Modul 45 devices.
Note: Observe VDE regulation.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

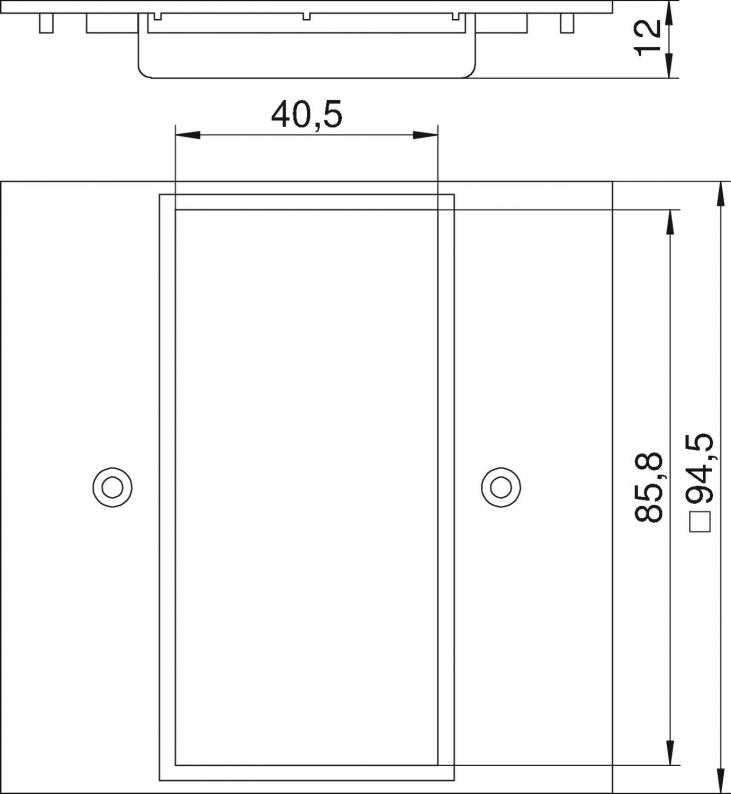

Dimensions

Width94,5 mm
Height94,5 mm

Technical data

Halogen-freeyes
Number of units2
Protection ratingIP20
Blanking lidno
Installation technologyGrid M45
Fastening typeScrew-on
Opening shapeRectangular
Dimension95x95mm
MaterialPolyamide
ColourRape yellow; RAL 1021
CO2 Footprint (GWP) Cradle-to-Gate0,0769 kg CO2e / 1 Piece
