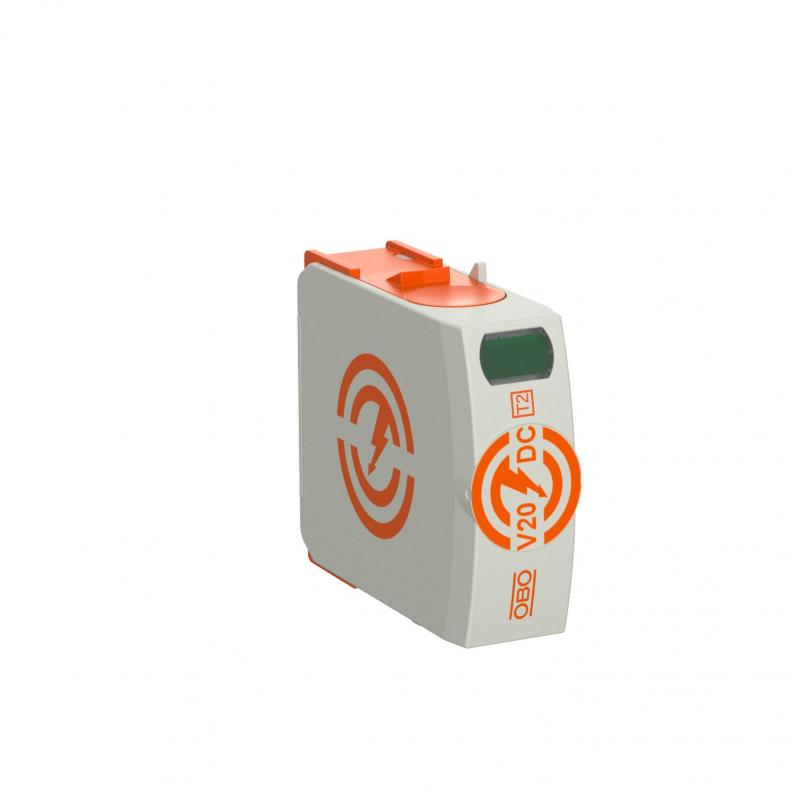

Upper part, surge arrester V20

Type V20-DC-60-0 | Item no. 5095369 | EAN 4012197354558

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Show all variants

Item no. / Type

5095369 / V20-DC-60-0

Protection rating

IP20

Pole version

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Upper part, surge arrester, type 2, for surge voltage protection following the EN61643-11 standard
• Discharge capacity to 20 kA (8/20) per pole through high-performance varistors
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0

Technical data

Pole number	1
Network form	DC
Signalling on device	Visual
Protection rating	IP20
Nominal discharge current (8/20 µs) [L-N]	20 kA
Remote signalling	no
Protection level [L-N]	≤0,5
Nominal discharge current (8/20 µs)	20 kA
Pole version	1
Max. mains-side overcurrent protection	160 A gL/gG
Short-circuit resistance for max. mains-side overcurrent protection	25 kA
Residual voltage [L-N] @ 1 kA	0,3 kV
SPD to UL 1449	Type 4
Short-circuit resistant	yes
DC network form	no
IT network form	no
TN network form	no
TN-C network form	no
TN-C-S network form	no
TN-S network form	no
TT network form	no
Other network form	no
Operating temperature, min.	-40 °C
Operating temperature, max.	80 °C
SPD to IEC 61643-1	Class II
SPD to EN 61643-11	Type 2
Maximum discharge current (8/20 μs)	40 kA
Maximum back-up fuse	160 A
Permitted temperature range, min.	-40 °C
Permitted temperature range, max.	80 °C
Dimension	60V DC
CO2 Footprint (GWP) Cradle-to-Gate	0,1124 kg CO2e / 1 Piece

Connectivity options

Arrester surge current (8/20 µs) [total]	40 kA
