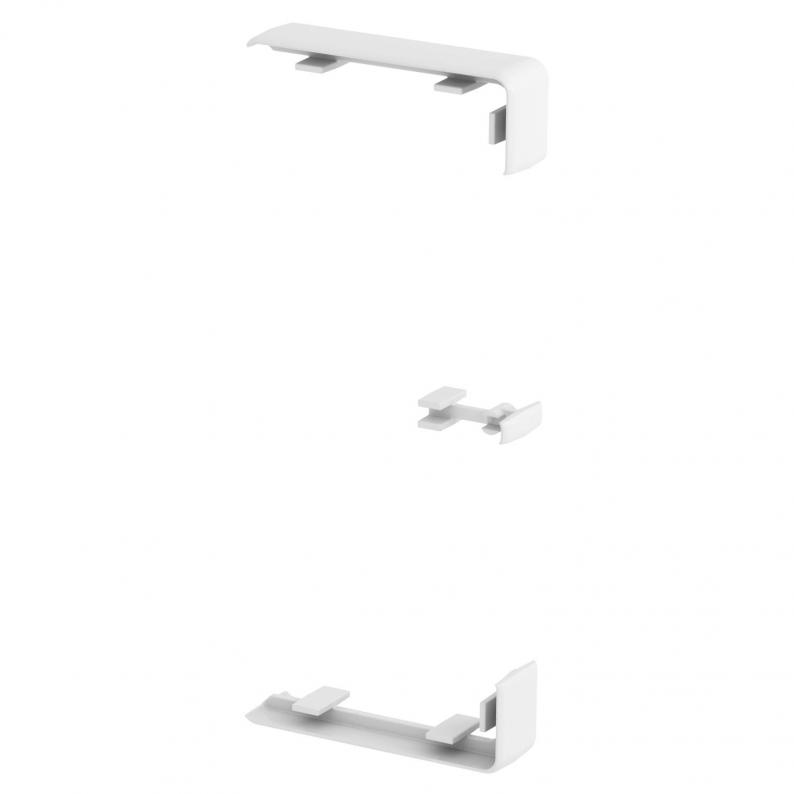

Trunking connector and joint cover
Type GK-KS45-2RW | Item no. 6113210 | EAN 4012196419418
Item no. / Type
6113210 / GK-KS45-2RW
Colour
Pure white; RAL 9010
Smallest selling unit: 0 translation missing
0translation missing
Description
Joint cover for the bases of the Rapid 45 device installation trunking to hide cut edges and provide a perfect connection of the trunking segments. The joint covers are attached. Suitable for trunking width 130 mm.
Technical data

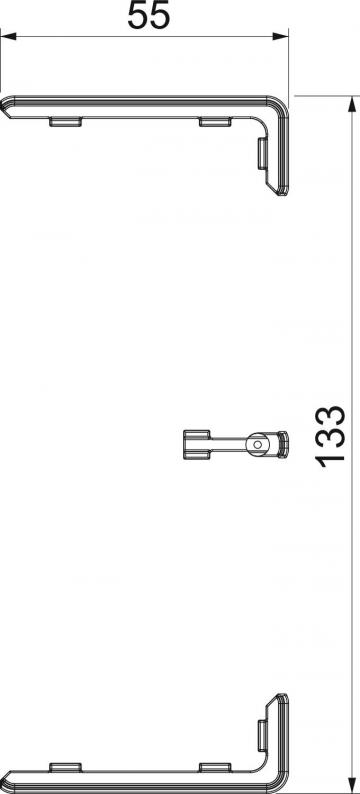

Dimensions
| Length | 15 mm |
|---|---|
| Width | 55 mm |
| Height | 17 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| for duct width | 130 mm |
| for trunking height | 53 mm |
| Shape | Symmetrical |
| Version for | Trunking cut cover |
| Fastening type | Slide (before mounting) |
| Cover width | 45 mm |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Dimension | 133x55x15 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0493 kg CO2e / 1 Piece |
