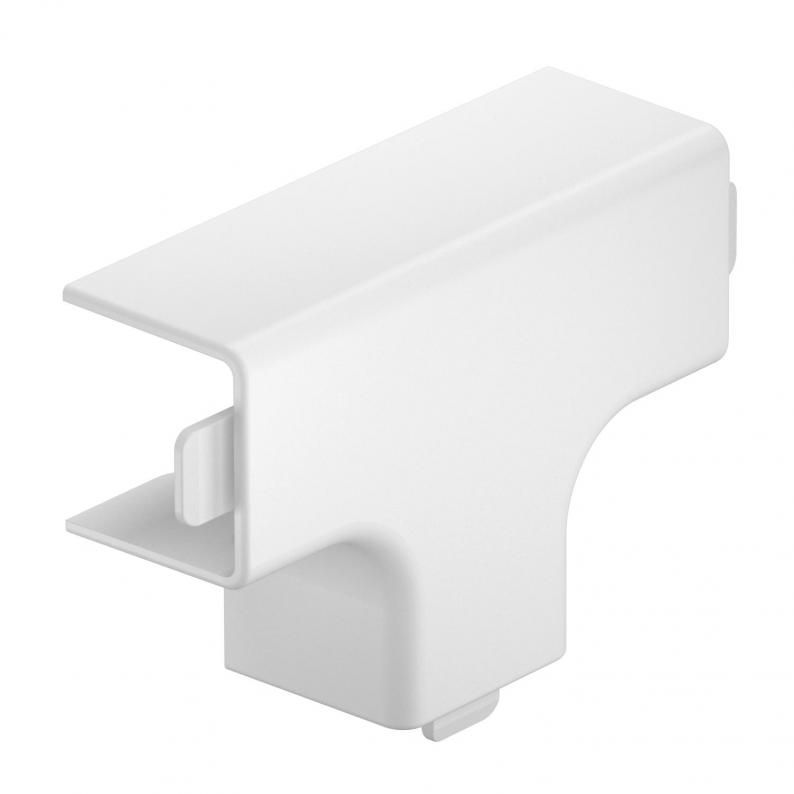

T piece cover, for trunking type WDKH 20020
Type WDKH-T20020RW | Item no. 6175694 | EAN 4012195922926
Item no. / Type
6175694 / WDKH-T20020RW
Colour
Pure white; RAL 9010
Smallest selling unit: 0 translation missing
0translation missing
Description
T and intersection cover for changing the direction of the halogen-free WDK-H trunking.
Technical data
Dimensions
| Length | 57 mm |
|---|---|
| Width | 20 mm |
| Height | 20 mm |

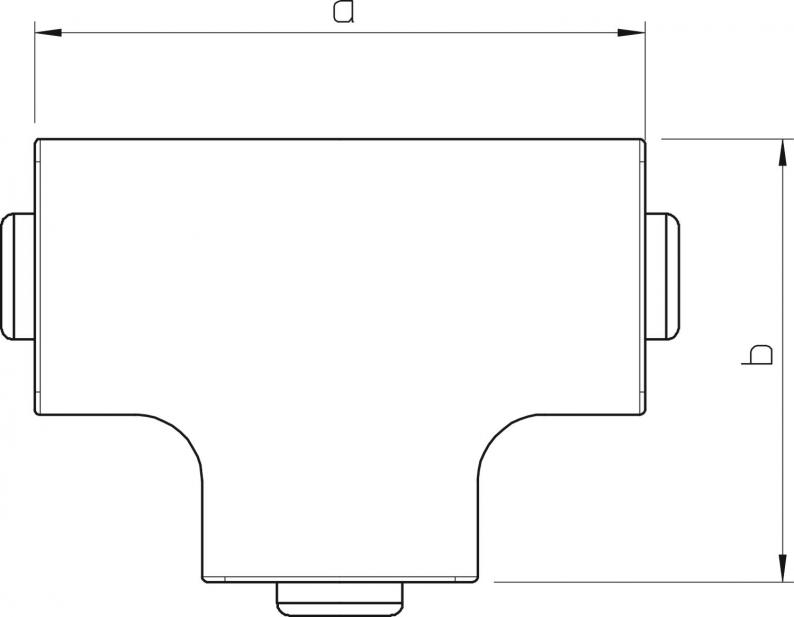

| Dimension b | 39 mm |
| Dimension a | 57 mm |
Technical data
| Maintain electrical functions | no |
|---|---|
| Halogen-free | yes |
| Protective film | no |
| Protection rating | IP30 |
| Protection rating IK code | IK07. |
| Version for | Hood fitting |
| Fastening type | Lockable |
| Trunking depth | 20 mm |
| Permitted temperature range, max. | 90 °C |
| Permitted temperature range, min. | -5 °C |
| Dimension | 20x20mm |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0479 kg CO2e / 1 Piece |
