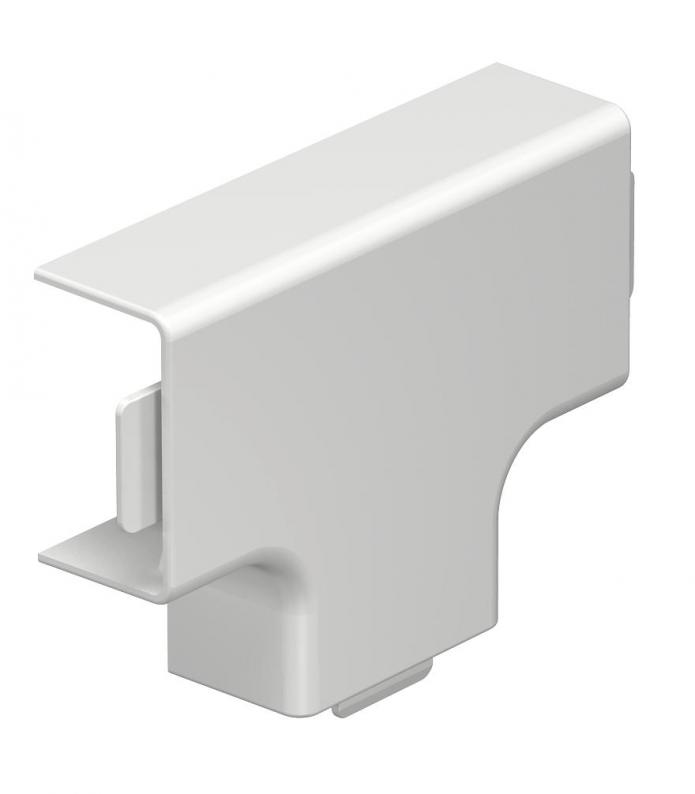

T piece cover, for trunking type WDK 15030

T piece cover, for trunking type WDK 15030

Type WDKH-T15030RW | Item no. 6175690 | EAN 4012195934189

Show all variants
Item no. / Type
6175690 / WDKH-T15030RW
Colour
Pure white; RAL 9010

Smallest selling unit: 0 translation missing

DescriptionTechnical dataDownloadsVariants

Description

T and intersection cover for changing the direction of the halogen-free WDK-H trunking.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • UKCA declaration of conformity
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Dimensions

Length73 mm
Width30 mm
Height18,5 mm

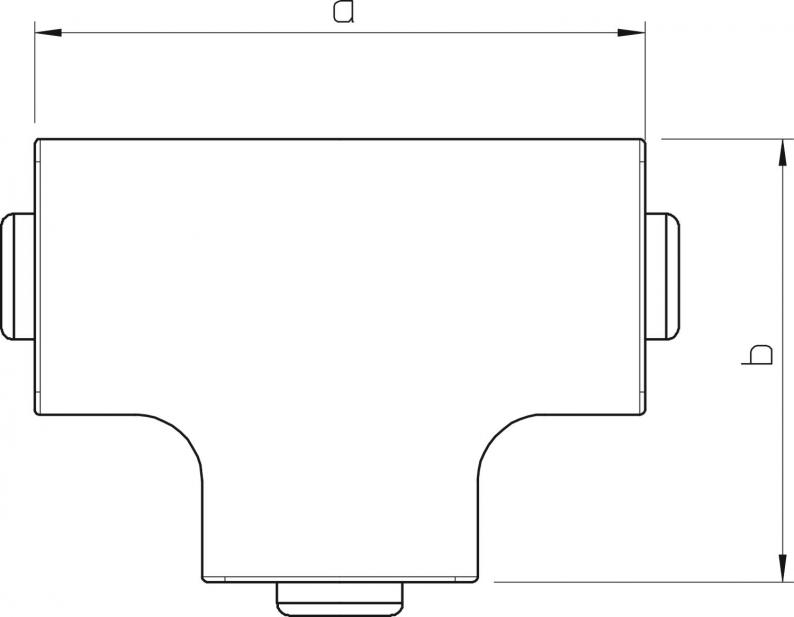

Dimension b53 mm
Dimension a73 mm

Technical data

Maintain electrical functionsno
Halogen-freeyes
Protective filmno
Protection ratingIP30
Protection rating IK codeIK07.
Version forHood fitting
Fastening typeLockable
Trunking depth15 mm
Permitted temperature range, max.90 °C
Permitted temperature range, min.-5 °C
Dimension15x30mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,0713 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

WDKH-T15030RW
Item no.
6175690
Dimension b
53
Dimension a
73
Colour
Pure white; RAL 9010
