T piece adapter on WDK 40060
Type GK-TA WDK 2RW | Item no. 6113320 | EAN 4012196419876
Item no. / Type
6113320 / GK-TA WDK 2RW
Colour
Pure white; RAL 9010
Smallest selling unit: 0 translation missing
0translation missing
Description

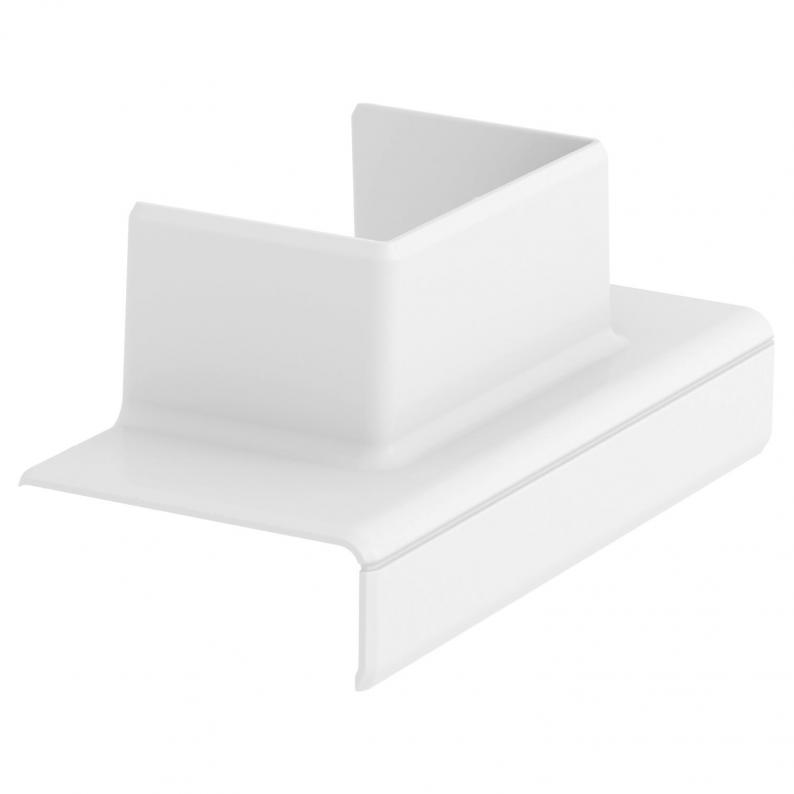

T piece adapter to create a 90° junction from the system size Rapid 45-2 53130 to a cable trunking WDK40060.
Technical data

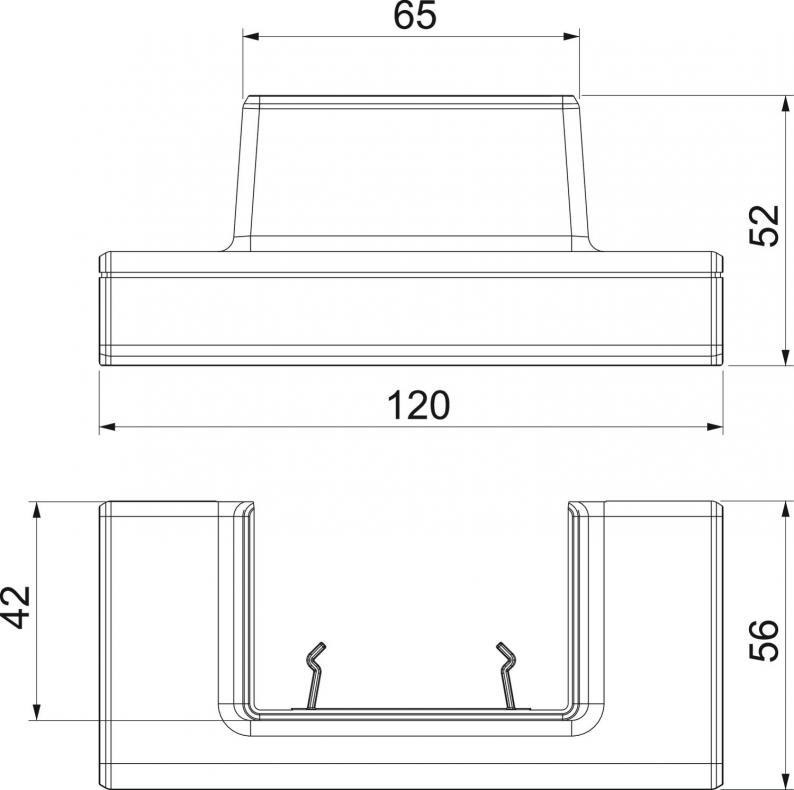

Dimensions
| Length | 120 mm |
|---|---|
| Width | 52 mm |
| Height | 55,5 mm |
Technical data
| Mounting perforation in base | no |
|---|---|
| Halogen-free | yes |
| Cable retaining clip | no |
| Protective film | no |
| Duct connector | no |
| Protection rating | IP40 |
| Symmetrical | no |
| Number of covers | 0 |
| Cover width 2 | 0 mm |
| Cover width 3 | 0 mm |
| Cover mounting type | Cross-over |
| Protection rating IK code | IK08 |
| Width of the branch | 60 mm |
| for duct width | 130 mm |
| for trunking height | 53 mm |
| Version for | Hood fitting |
| Cover width | 0 mm |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Dimension | 120x52x56 |
| Material | Polycarbonate/Acrylnitrile-butadiene-styrene |
| Colour | Pure white; RAL 9010 |
| Antibacterial treatment | no |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,1763 kg CO2e / 1 Piece |
