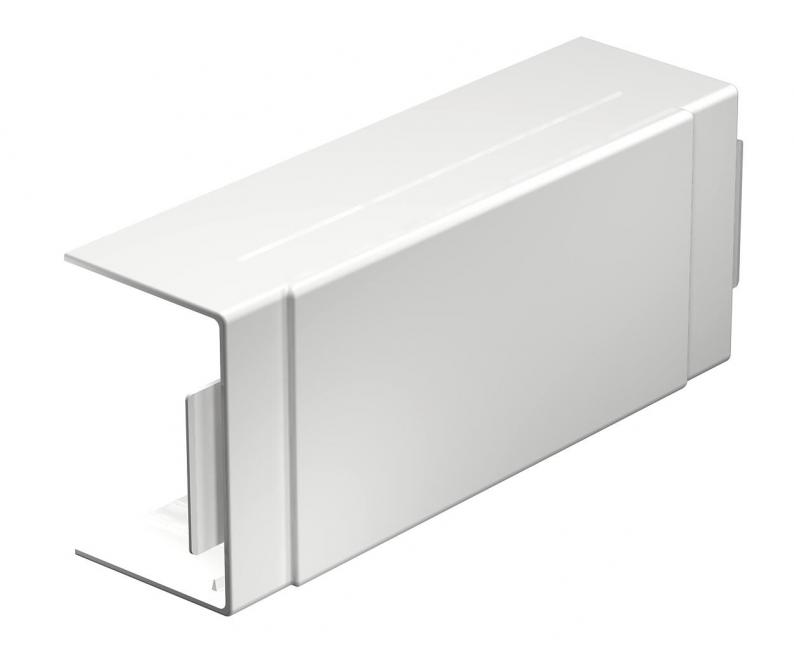

T and intersection cover, for trunking type WDKH 60090

T and intersection cover, for trunking type WDKH 60090

Type WDKH-T60090RW | Item no. 6175706 | EAN 4012195814184

Show all variants
Item no. / Type
6175706 / WDKH-T60090RW
Colour
Pure white; RAL 9010

Smallest selling unit: 0 translation missing

DescriptionTechnical dataDownloadsVariants

Description

T and intersection cover for changing the direction of the halogen-free WDKH trunking. The fitting is preperforated at the side for the connection of different trunking cross-sections.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Length230 mm
Width94 mm
Height60 mm
Dimension b94 mm
Dimension a230 mm

Technical data

Maintain electrical functionsno
for duct dimension60x
Halogen-freeyes
Protective filmno
Protection ratingIP30
Protection rating IK codeIK07.
Version forHood fitting
Fastening typeLockable
Trunking depth60 mm
Permitted temperature range, max.90 °C
Permitted temperature range, min.-5 °C
Dimension60x90mm
MaterialPolycarbonate/Acrylnitrile-butadiene-styrene
ColourPure white; RAL 9010
Antibacterial treatmentno
CO2 Footprint (GWP) Cradle-to-Gate0,9195 kg CO2e / 1 Piece

Downloads

0 selected

Data sheet (2)
Catalogues & Flyers (1)
Declarations (4)
Instructions and Aid (2)
Product images (2)
3D data downloads (1)
Tender specifications (2)

Variants

WDKH-T60090RW
Item no.
6175706
Dimension b
94
Dimension a
230
Colour
Pure white; RAL 9010
