Network technology

OBO NetDefender for outside area with protection classes IP66 and IK08

Surge protection for CCTV data cable for CAT6A/PoE++ high-speed networks

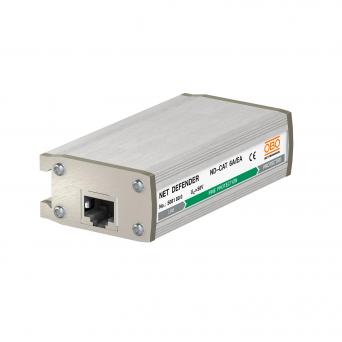

With the NetDefender, OBO presents data cable protection devices for CAT6A high-speed networks that are suitable for outdoor use (IP66). The NetDefender combines gross protection (D1), middle protection (C2) and fine protection (C1). They are tested in accordance with IEC 61643-21 and the extremely robust aluminium housing has protection class IP66 as well as an additional shielding effect. The NetDefenders are available as a variant with RJ45 STP or LSA+ connection option on the entrance side and as RJ45 STP on the outgoing side. They support Power over Ethernet ++ (PoE++ / 4PPoE) up to 1 A in accordance with IEEE 802.3 and have a certified transmission quality in networks up to 10 Gbit/s (class EA) or CAT6A.

Typical areas of application for the NetDefender:

• Protection of for example IP CCTV camera systems with PoE applications
• Protection of the data side of the photovoltaic intverters
• Industrial applications
