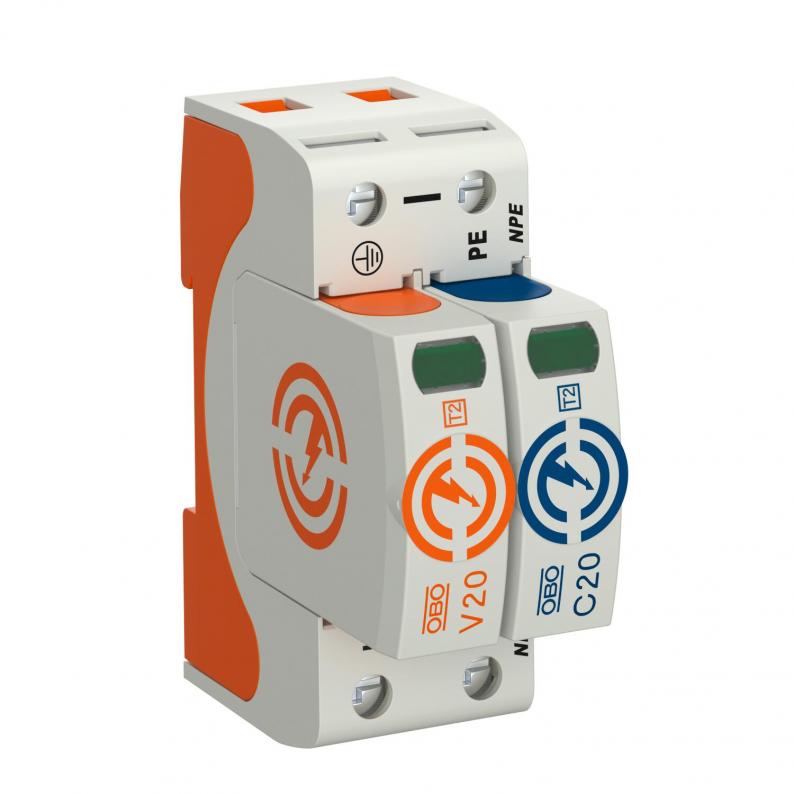

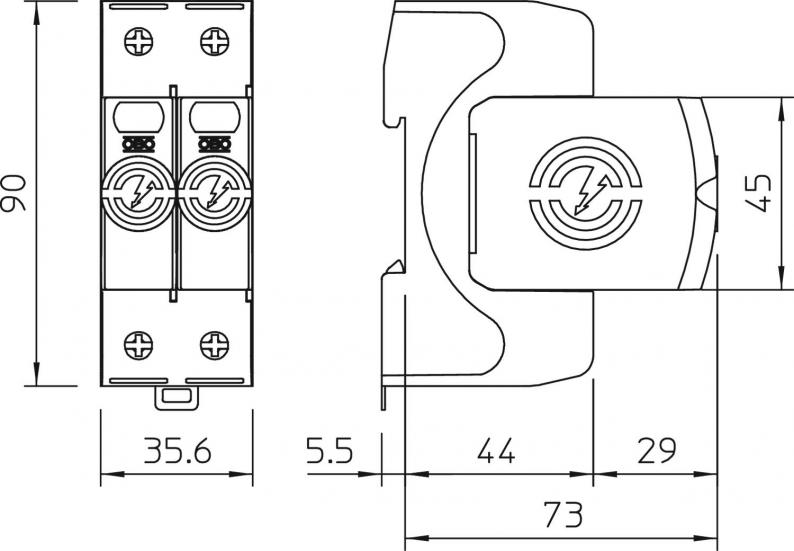

Surge arrester V20, 1-pole + NPE, 75 V

Surge arrester V20, 1-pole + NPE, 75 V

Type V20-1+NPE-75
|
Item no. 5095221
|
EAN 4012196160020
Show all variants
Item no. / Type
5095221 / V20-1+NPE-75
Protection rating
IP20
Pole version
1+N/PE

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Surge arrester, type 2

• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors
• Modular connectable arrester with cut-off unit and visual status display
• Locking mechanism with vibration protection and voltage keying
• Plastic to UL 94 V-0
• The remote signalling variants (FS) have a potential-free changeover contact for remote signalling

Application: Equipotential bonding in main and sub-distributions.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Pole number2
Network formOther
Blow-outno
Signalling on deviceVisual
Protection ratingIP20
Maximum continuous voltage (L-N)75 V
Maximum continuous voltage (N-PE)255 V
Nominal discharge current (8/20 µs) [L-N]20 kA
Nominal discharge current (8/20 µs) [N-PE]40 kA
Housing material surge protection componentsPA UL 94 V-0
Maximum discharge current (8/20 μs) [L-N]40 kA
Maximum discharge current (8/20 μs) [N-PE]60 kA
Remote signallingno
Test class, type 2yes
Nominal voltage AC (50/60 Hz)60 V
Integrated back-up fuseno
Protection level [L-N]≤0,5
Maximum continuous voltage AC75 V
Maximum continuous voltage DC100 V
Nominal discharge current (8/20 µs)20 kA
Pole version1+N/PE
Installation typeDIN rail 35 mm
Max. mains-side overcurrent protection160 A gL/gG
Residual voltage [L-N] @ 5 kA0,4 kV
Short-circuit resistance for max. mains-side overcurrent protection50 kA eff
Residual voltage [L-N] @ 1 kA0,3 kV
TOV voltage [L-N] ‒ withstand mode ‒ 5 s90 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.115 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
SPD to UL 1449Type 4
Minimum distance1,5 mm
ApprovalsVDE, KEMA, UL, ÖVE
Conductor cross-section, flexible (fine-wire), max.2 AWG
Short-circuit resistantyes
TN network formyes
TN-C-S network formyes
TN-S network formyes
TT network formyes
Operating temperature, min.-40 °C
Operating temperature, max.80 °C
Torque4 Nm
SPD to IEC 61643-1Class II
SPD to EN 61643-11Type 2
Maximum discharge current (8/20 μs)40 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Maximum back-up fuse160 A
Permitted temperature range, min.-40 °C
Permitted temperature range, max.80 °C
Dimension75V
CO2 Footprint (GWP) Cradle-to-Gate1,1608 kg CO2e / 1 Piece
