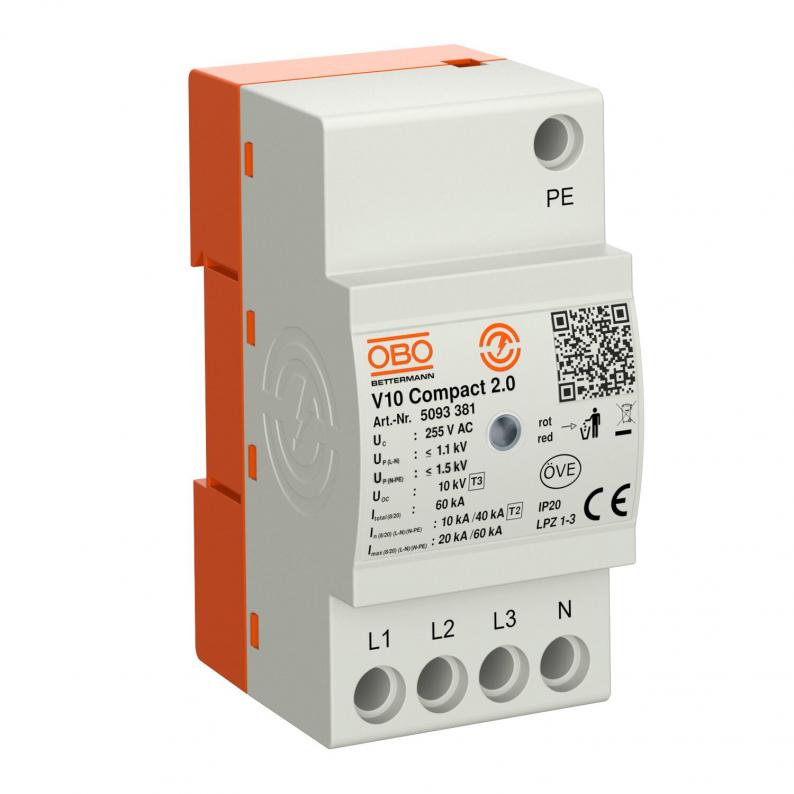

Surge arrester V10 Compact
Type V10 Compact2.0 | Item no. 5093381 | EAN 4012196862566
Item no. / Type
5093381 / V10 Compact2.0
Protection rating
IP20
Pole version
3+N/PE
Smallest selling unit: 1 piece
1piece
Description
Surge protective device, compact module, type 2+3
• Surge protection in main and sub-distributions according to IEC 60364-4-44
• Arresting capacity up to 60 kA (8/20) in total
• Integrated 3+1 solution for TN and TT network systems on 45 mm module width
• High-performance varistor technology
• Including thermic and dynamic cut-off unit and visual status display
Application: Main and sub-distribution as well as device protection in three-phase current systems.
• Surge protection in main and sub-distributions according to IEC 60364-4-44
• Arresting capacity up to 60 kA (8/20) in total
• Integrated 3+1 solution for TN and TT network systems on 45 mm module width
• High-performance varistor technology
• Including thermic and dynamic cut-off unit and visual status display
Application: Main and sub-distribution as well as device protection in three-phase current systems.
Technical data
Dimensions
| Length | 60,5 mm |
|---|---|
| Width | 45 mm |
| Height | 90 mm |
Technical data
| Pole number | 4 |
|---|---|
| Network form | All |
| Signalling on device | Visual |
| Protection rating | IP20 |
| Nominal discharge current (8/20 µs) [L-N] | 10 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 40 kA |
| Maximum discharge current (8/20 μs) [L-N] | 20 kA |
| Maximum discharge current (8/20 μs) [N-PE] | 60 kA |
| Test class, type 2 | yes |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Integrated back-up fuse | no |
| Protection level [L-N] | ≤1,1 |
| Maximum continuous voltage AC | 255 V |
| Nominal discharge current (8/20 µs) | 10 kA |
| Pole version | 3+N/PE |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 63 A gG |
| Minimum distance | 0 mm |
| Version for | 3+NPE |
| Conductor cross-section, flexible (fine-wire), max. | 8 AWG |
| TN network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
| Operating temperature, max. | 70 °C |
| Operating temperature, min. | -40 °C |
| Torque | 2 Nm |
| SPD to IEC 61643-1 | Class II+III |
| SPD to EN 61643-11 | Type 2+3 |
| Lightning protection zone LPZ | 1→3 |
| Maximum discharge current (8/20 μs) | 20 kA |
| Follow current quenching capacity (eff) [N-PE] | 0,1 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 63 A |
| Permitted temperature range, max. | 70 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 255V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,7671 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, flexible (fine-wire), max. | 10 mm² |
|---|---|
| Conductor cross-section, flexible (fine-wire), min. | 2,5 mm² |
| Arrester surge current (8/20 µs) [total] | 60 kA |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
| Conductor cross-section, rigid (single-wire/multiwire), max. | 8 AWG |
| Conductor cross-section, rigid (single-wire/multiwire), min. | 13 AWG |
