Surge arrester V10 Compact

Surge arrester V10 Compact

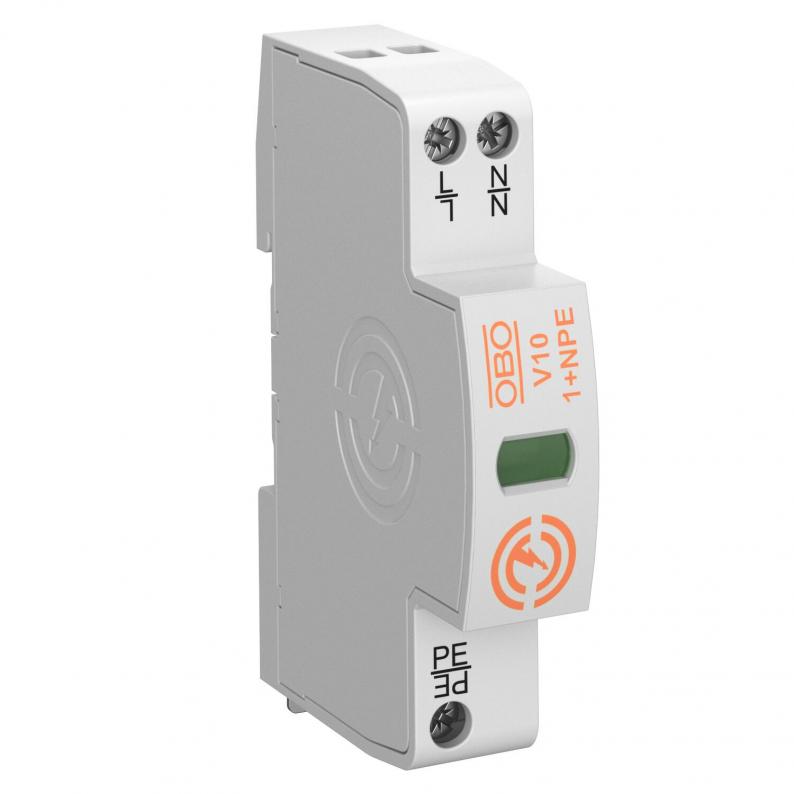

Type V10-1+NPE
|
Item no. 5093395
|
EAN 4012197444396
Show all variants
Item no. / Type
5093395 / V10-1+NPE
Protection rating
IP20
Pole version
1+N/PE

Smallest selling unit: 1 piece

piece

DescriptionTechnical dataDownloadsVariants

Description

Surge protective device, compact module, type 2+3

• Surge protection in sub-distributors according to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity up to 20 kA (8/20) in total
• High-performance varistor systems
• Including thermal and dynamic separating device and visual function display

Application: Sub-/floor distributors as well as device protection
  • Lightning current-tested
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Transition from LPZ 1 to LPZ 3
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard
  • CO₂ footprint (PCF)

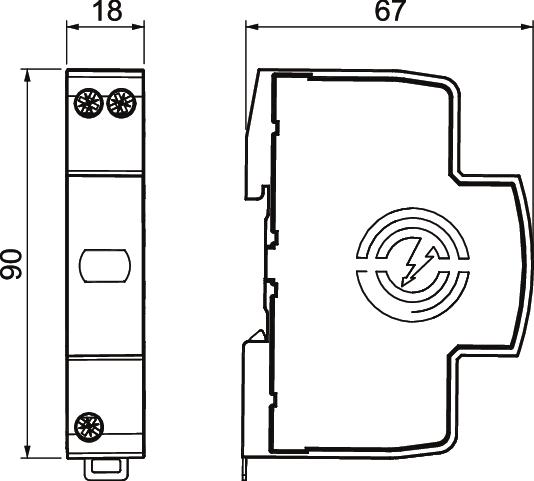

Technical data

Materials and Packaging

Packaging made completely from recycled cardboard.yes
Packaging without plasticyes

Technical data

Pole number2
Network formAll
Signalling on deviceVisual
Protection ratingIP20
Nominal discharge current (8/20 µs) [L-N]10 kA
Nominal discharge current (8/20 µs) [N-PE]10 kA
Explosion-tested versionno
Test class, type 1no
Remote signallingno
Test class, type 2yes
Test class, type 3yes
Nominal voltage AC (50/60 Hz)230 V
Integrated back-up fuseno
Protection level [L-N]≤1,1
Maximum continuous voltage AC255 V
Pole version1+N/PE
Installation typeDIN rail 35 mm
Suitable for outdoor useno
Max. mains-side overcurrent protection63 A gG
TN network formyes
TN-C-S network formyes
TN-S network formyes
TT network formyes
Operating temperature, min.-40 °C
Operating temperature, max.70 °C
Torque2 Nm
SPD to IEC 61643-1Class II+III
SPD to EN 61643-11Type 2+3
Lightning protection zone LPZ1→3
Maximum discharge current (8/20 μs)20 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Response time<25 ns
Maximum back-up fuse63 A
Permitted temperature range, min.-40 °C
Permitted temperature range, max.70 °C
Dimension255V
Humidity, max.95 %
Humidity, min.5 %

Connectivity options

Conductor cross-section, flexible (fine-wire), min.2,5 mm²
Conductor cross-section, flexible (fine-wire), max.10 mm²
Arrester surge current (8/20 µs) [total]20 kA
Conductor cross-section, flexible (fine-wire), min.13 AWG
Conductor cross-section, flexible (fine-wire), max.8 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.2,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.10 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.13 AWG
Conductor cross-section, rigid (single-wire/multiwire), max.8 AWG

CO2 footprint (Product Carbon Footprint)

CO2 Footprint (GWP) Cradle-to-Gate1,7031 kg CO2e / 1 Piece
