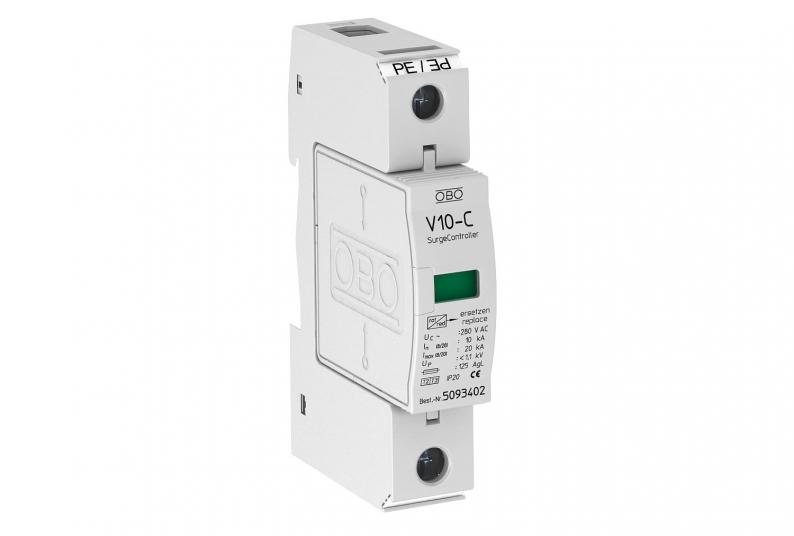

Surge arrester V10 280 V
Type V10-C 1-280 | Item no. 5093415 | EAN 4012195406778
Item no. / Type
5093415 / V10-C 1-280
Protection rating
IP20
Pole version
1
Smallest selling unit: 1 piece
1piece
Description
Surge arrester, type 2+3
• Surge protection in sub-distributors to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 20 kA (8/20) per pole
• Arrester, connectable with dynamic cut-off unit and visual function display
• High-performance varistor technology
• Base with multiple connection terminals
Application: Equipotential bonding in sub-distributors and device protection
• Surge protection in sub-distributors to VDE 0100-443 (IEC 60364-4-44)
• Arresting capacity to 20 kA (8/20) per pole
• Arrester, connectable with dynamic cut-off unit and visual function display
• High-performance varistor technology
• Base with multiple connection terminals
Application: Equipotential bonding in sub-distributors and device protection
Technical data
Technical data
| Network form | All |
|---|---|
| Signalling on device | Visual |
| Protection rating | IP20 |
| Nominal discharge current (8/20 µs) [L-N] | 10 kA |
| Nominal discharge current (8/20 µs) [N-PE] | 30 kA |
| Nominal voltage AC (50/60 Hz) | 230 V |
| Maximum continuous voltage AC | 280 V |
| Nominal discharge current (8/20 µs) | 10 kA |
| Pole version | 1 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 125 |
| Version for | 1-pole |
| TN network form | yes |
| TN-C network form | yes |
| TN-C-S network form | yes |
| TN-S network form | yes |
| TT network form | yes |
| Operating temperature, min. | -40 °C |
| Operating temperature, max. | 80 °C |
| SPD to IEC 61643-1 | Class II+III |
| SPD to EN 61643-11 | Type 2+3 |
| Lightning protection zone LPZ | 1→3 |
| Maximum discharge current (8/20 μs) | 20 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 125 A |
| Permitted temperature range, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Dimension | 280V |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5907 kg CO2e / 1 Piece |
Connectivity options
| Arrester surge current (8/20 µs) [total] | 10 kA |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
