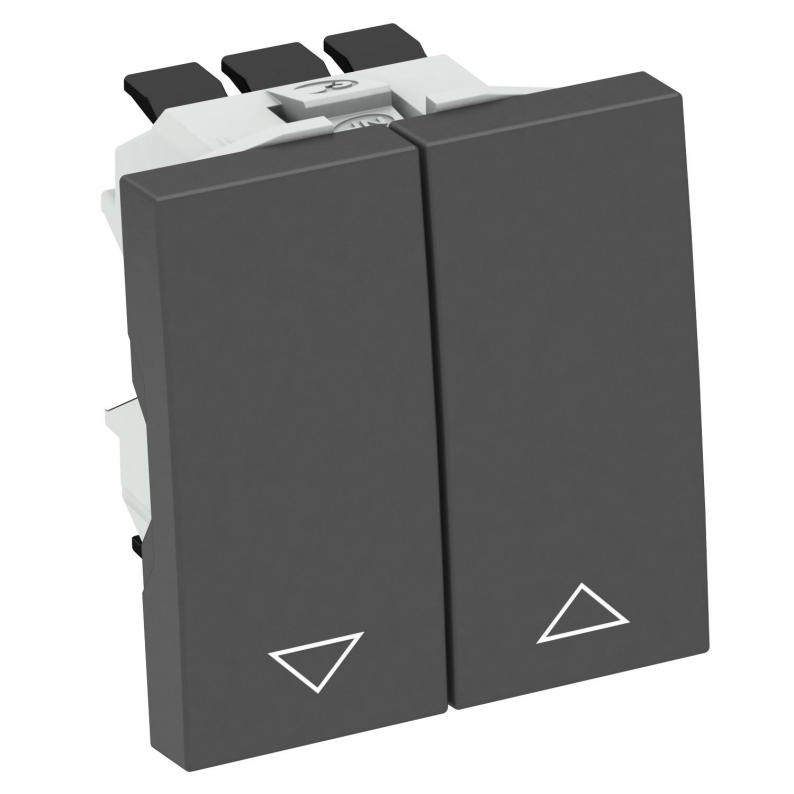

Roller blind switch, 1 module
Type RS-BS SWGR1 | Item no. 6120952 | EAN 4012196570942
Item no. / Type
Version for
Switch, 1-pin
Smallest selling unit: 1 piece
1piece
Description
Roller blind switch with electrical and mechanical lock, 1-pin, 10 A, 250 V~, with screwless terminals.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
For installation in Rapid 45 device installation ducts, Rapid 80 device installation ducts, service poles and underfloor systems.
Technical data
Technical data
| Halogen-free | yes |
|---|---|
| Labelling panel | no |
| Protection rating | IP20 |
| Nominal current | 10 A |
| Nominal voltage | 250 V |
| Surface version | Matt |

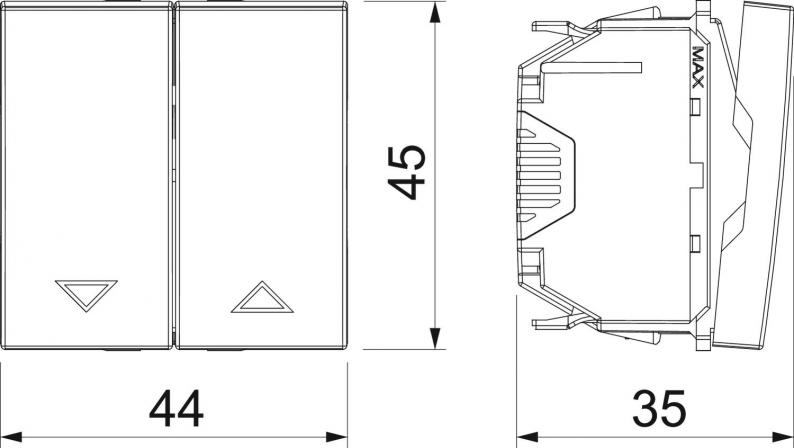

| Dimension | 45 x 45 |
| Transparent | no |
| Combination | Miscellaneous |
| Number of modules (for modular construction) | 1 |
| Version for | Switch, 1-pin |
| Operation type | Rocker |
| Mounting type | Device installation duct |
| Fastening type | Lock |
| Combination | Miscellaneous |
| Dimension | 10 A, 250 V |
| Material | Polycarbonate |
| Colour | Black-grey; RAL 7021 |
