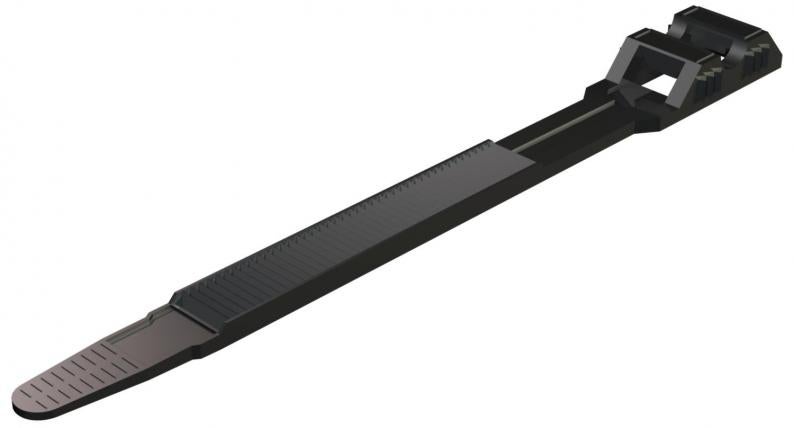

Ribbon clip, 9 mm-wide
Type 550 9X760 SW
|Item no. 2330342
|EAN 4012195455714
Item no. / Type
This item is a discontinued product!
Smallest selling unit: 100 piece
100piece
piece
Description
Design D, double lock, UV and weather-resistant.
Technical data

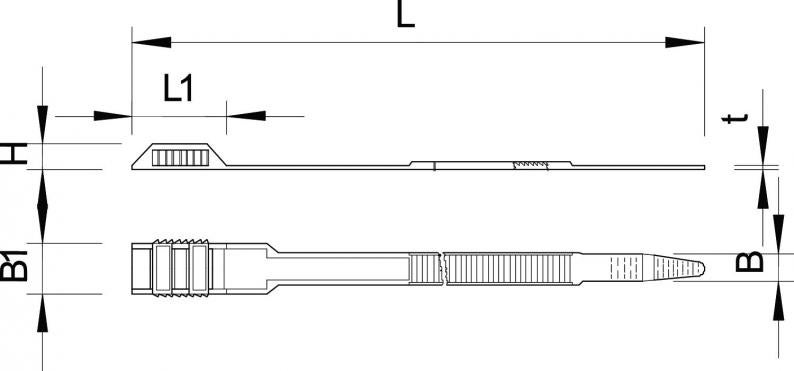

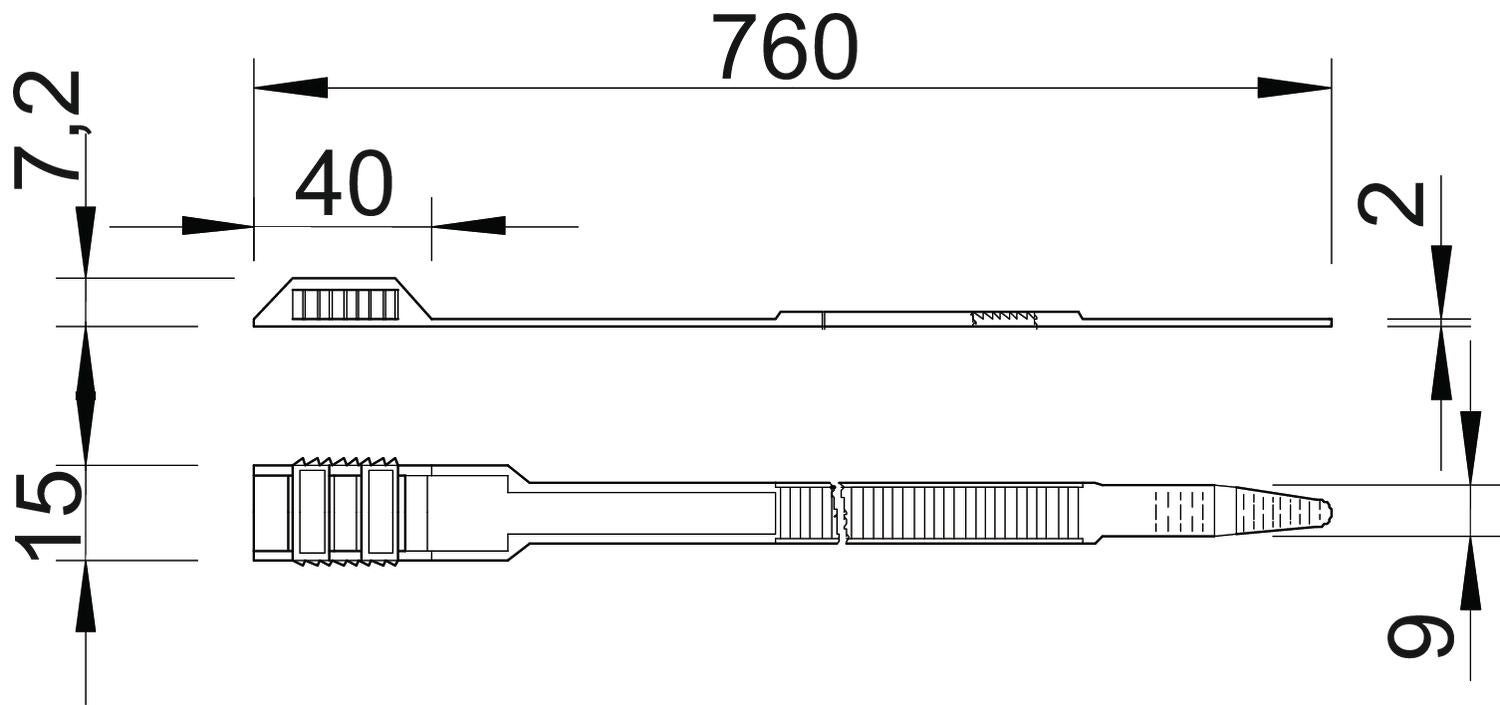

Dimensions
| Dimension L | 760 mm |
|---|---|
| Dimension B | 9 mm |
| Dimension t | 2 mm |
Technical data
| Halogen-free | yes |
|---|---|
| minimum breaking load | 0,55 kN |
| Max. Bundle diameter | 220 mm |
| Version for | Externally toothed |
| Fastening type | Without |
| Dimension | 9x760mm |
| Material | Polyamide |
| Colour | Black |
Downloads
0 selected
Data sheet (1)
Catalogues & Flyers (1)
Declarations (3)
Product images (2)
Tender specifications (1)
Variants
Type
Item no.
550 6X180 SW
2330059
550 9X265 SW
2330245
550 9X360 SW
2330296
550 9X510 SW
2330326
550 9X760 SW
2330342
