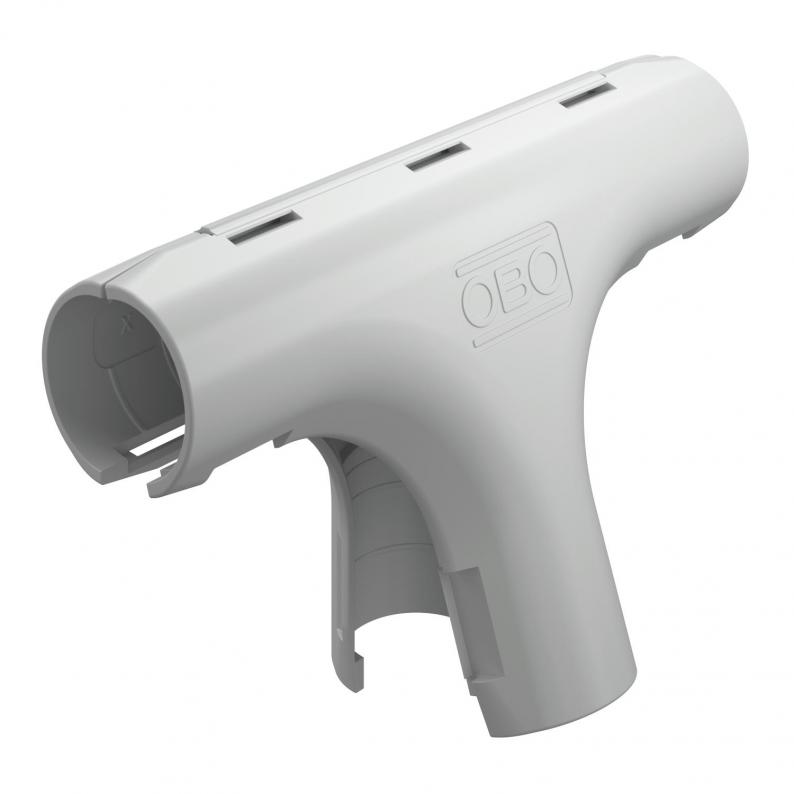

Quick pipe T piece, light grey
Type 3000 TMS M20 LGR | Item no. 2153841 | EAN 4012196868414
Item no. / Type
2153841 / 3000 TMS M20 LGR
Size
M20
Smallest selling unit: 5 piece
5piece
Description
Fitting for plastic electrical installation pipes to create T branches. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data

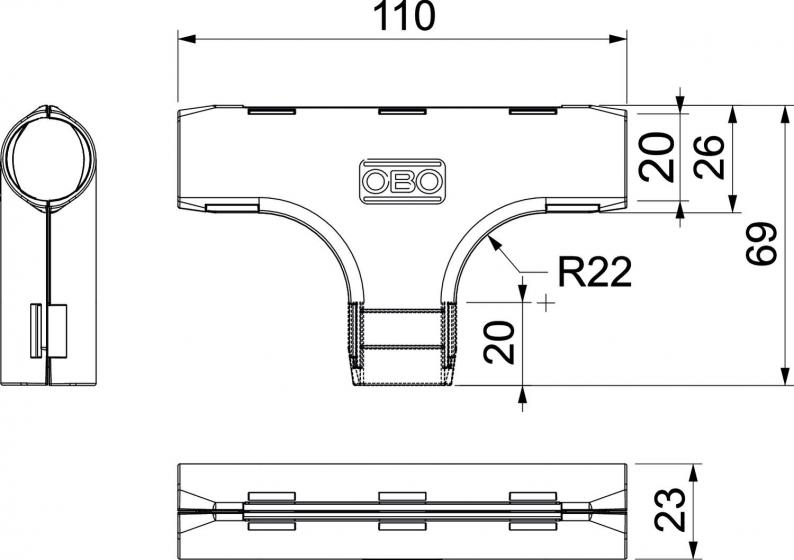

Dimensions
| Dimension L | 69 mm |
|---|---|
| Dimension d | 20 mm |
| Dimension B | 26 mm |
| Dimension R | 22 mm |
| Dimension L1 | 20 mm |
| Dimension B2 | 110 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Size | M20 |
| Polished surface | no |
| With sleeve | no |
| Brushed surface | no |
| Version for | Connector |
| Shape | T piece |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | 0 °C |
| Dimension | M20 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0899 kg CO₂e / 1 Piece |
