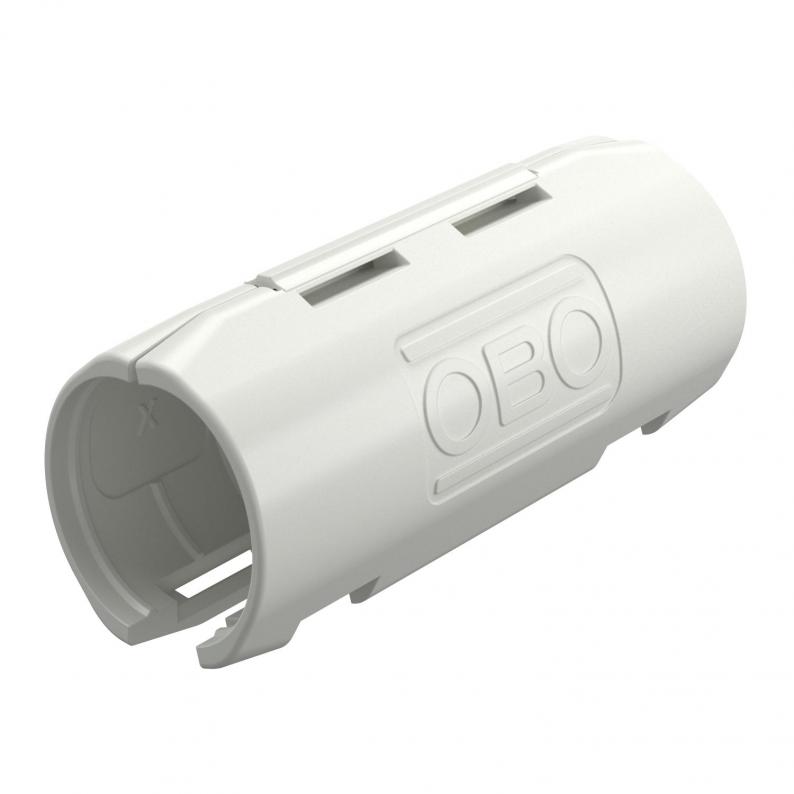

Quick pipe connecting sleeve, pure white

Quick pipe connecting sleeve, pure white

Type 3000 MMS M16 RW | Item no. 2154091 | EAN 4012196870110

Show all variants
Item no. / Type

Smallest selling unit: 10 piece

DescriptionTechnical dataDownloadsVariants

Description

Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection rating IP 40
  • Thread metric
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Dimensions

Dimension L52 mm
Dimension d15,6 mm
Dimension B21 mm
Dimension L118 mm

Technical data

Halogen-freeyes
SizeM16
Polished surfaceno
Permitted temperature range, max.60 °C
Permitted temperature range, min.0 °C
DimensionM16
MaterialPolypropylene
ColourPure white; RAL 9010
CO2 Footprint (GWP) Cradle-to-Gate0,0316 kg CO₂e / 1 Piece

Downloads

0 selected

Data sheet (1)
Catalogues & Flyers (2)
Declarations (4)
Certificates (1)
Product images (2)
Tender specifications (2)

Variants

3000 MMS M16 RW
Item no.
2154091
3000 MMS M20 RW
Item no.
2154093
