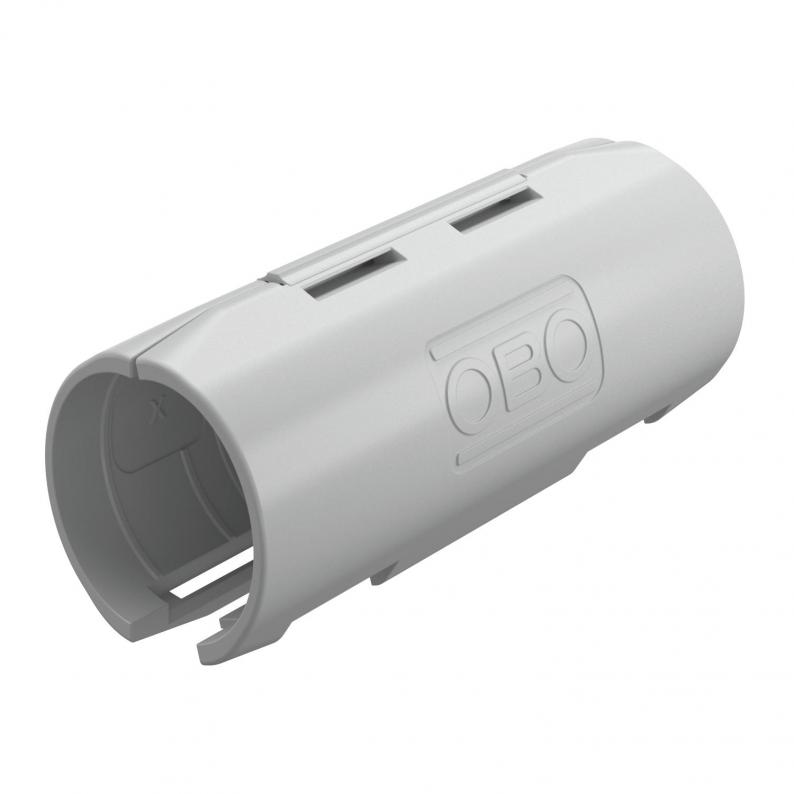

Quick pipe connecting sleeve, light grey
Type 3000 MMS M20 LGR | Item no. 2154083 | EAN 4012196870080
Item no. / Type
Smallest selling unit: 10 piece
10piece
Description
Connection sleeve for plastic electrical installation pipes to create straight connections. Suitable for Quick pipe pipes or corrugated pipes. Toolless closing and opening. Can be used in a temperature range of –25 to +60 °C.
Technical data

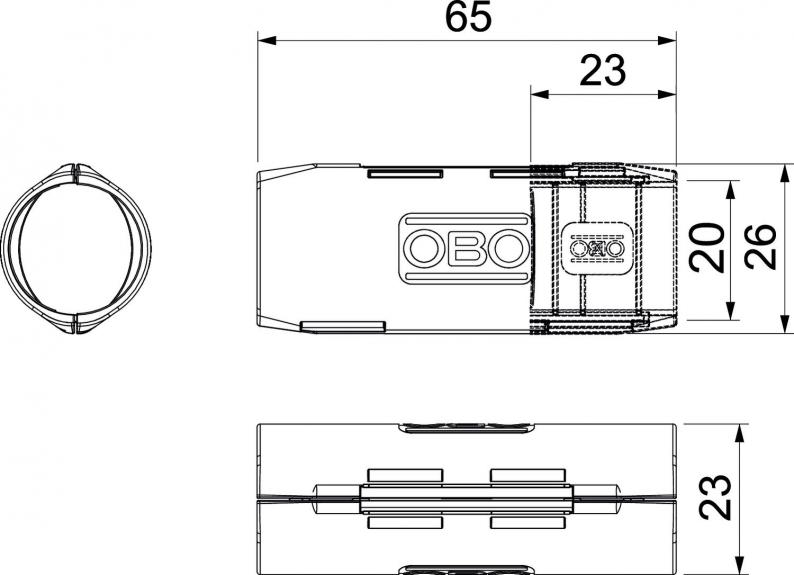

Dimensions
| Dimension L | 65 mm |
|---|---|
| Dimension d | 20 mm |
| Dimension B | 26 mm |
| Dimension L1 | 23 mm |
Technical data
| Halogen-free | yes |
|---|---|
| Size | M20 |
| Polished surface | no |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | 0 °C |
| Dimension | M20 |
| Material | Polypropylene |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0356 kg CO₂e / 1 Piece |
