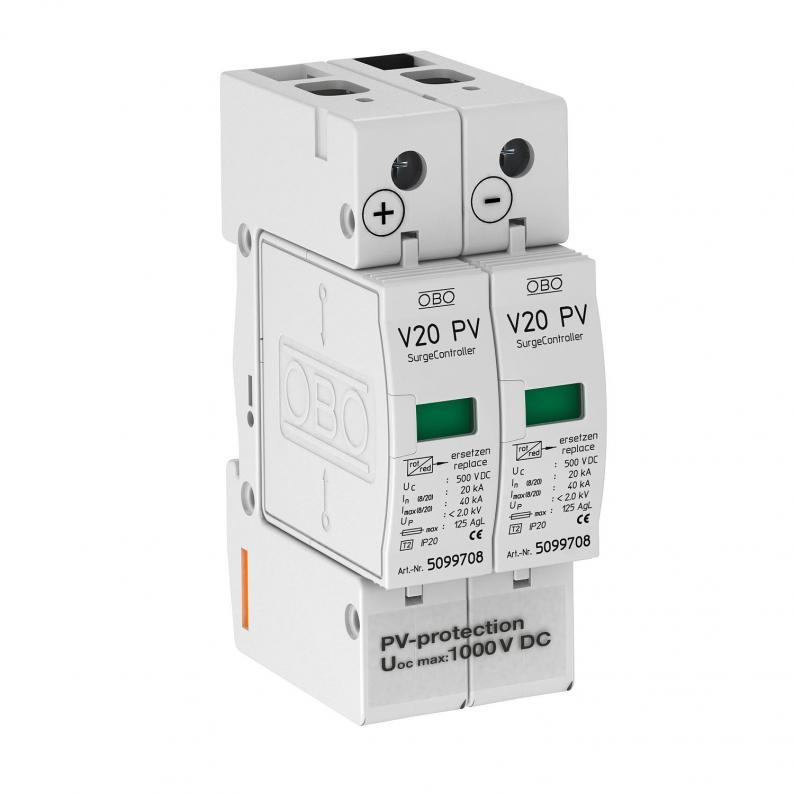

PV surge protection V20 2pole 1000 V DC
Type V20-C 2-PH-1000 | Item no. 5094617 | EAN 4012195478669
Item no. / Type
5094617 / V20-C 2-PH-1000
Protection rating
IP20
Pole version
2
Smallest selling unit: 1 piece
1piece
Description
V20 surge arrester, Type 2, for earthed photovoltaic systems
• Complete unit consisting of varistor arrester with cut-off unit
• For PV systems directly earthed on DC side to VDE 0100-712 (EN 50539-12)
• Surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• V20-C 3-PH-1000 tested to EN 50539-11 (VDE / KEMA)
• Arresting capacity to 40 kA (8/20) per pole
• Low DC voltage protection level: < 4.0 kV and Voc max = 1,000 V DC
• With visual function display for use in distributor housings
Application: Directly earthed PV systems with or without isolated lightning protection system
• Complete unit consisting of varistor arrester with cut-off unit
• For PV systems directly earthed on DC side to VDE 0100-712 (EN 50539-12)
• Surge protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)
• V20-C 3-PH-1000 tested to EN 50539-11 (VDE / KEMA)
• Arresting capacity to 40 kA (8/20) per pole
• Low DC voltage protection level: < 4.0 kV and Voc max = 1,000 V DC
• With visual function display for use in distributor housings
Application: Directly earthed PV systems with or without isolated lightning protection system

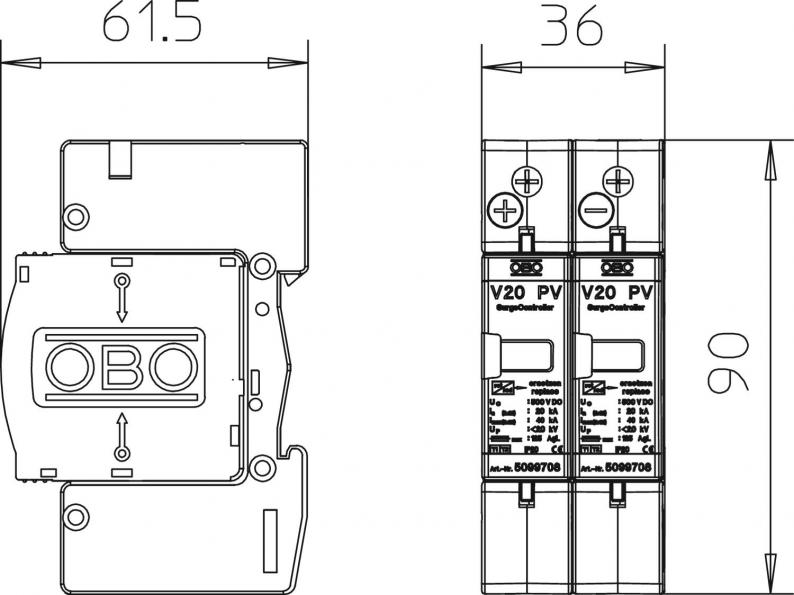

Technical data
Technical data
| Network form | Other |
|---|---|
| Blow-out | no |
| Signalling on device | Visual |
| Protection rating | IP20 |
| Remote signalling | no |
| Test class, type 2 | yes |
| Maximum continuous voltage DC | 1000 V |
| Nominal discharge current (8/20 µs) | 20 kA |
| Pole version | 2 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 125 |
| Version for | 2-pole for earthed PV systems |
| DC network form | yes |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| SPD to IEC 61643-1 | Class II |
| SPD to EN 61643-11 | Type 2 |
| Lightning protection zone LPZ | 1→2 |
| Maximum discharge current (8/20 μs) | 40 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 125 A |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 1000V DC |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,8821 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
|---|
