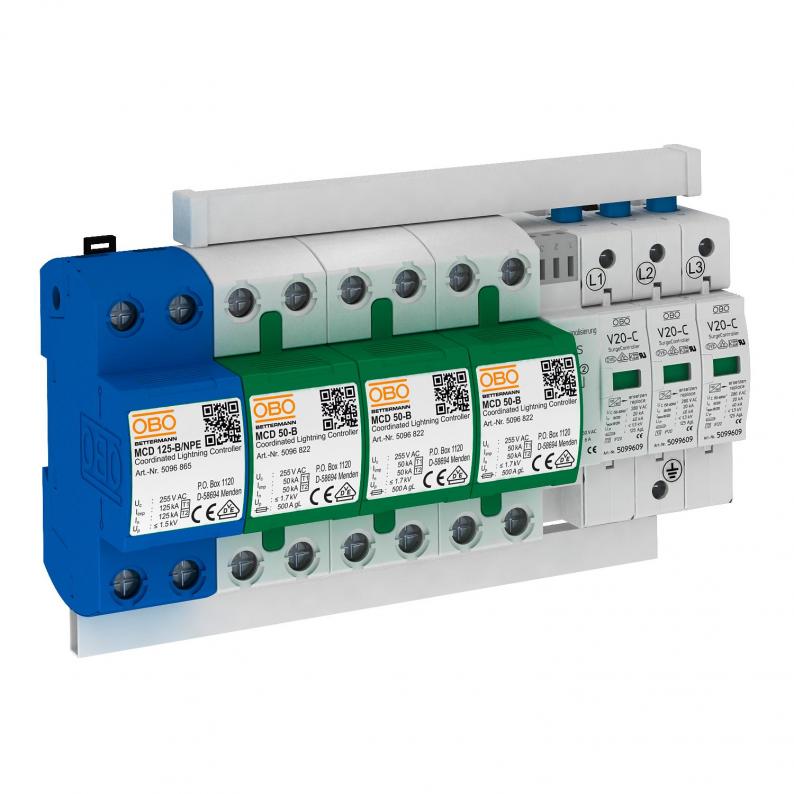

Protection set MCD + V20 3-pole + NPE with remote signalling

Protection set MCD + V20 3-pole + NPE with remote signalling

Type PS4-B+C TNS+FS | Item no. 5089763 | EAN 4012195405559

Show all variants
Item no. / Type
5089763 / PS4-B+C TNS+FS
Protection rating
IP20
Pole version
3+N/PE

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Protection set, lightning and surge arrester type 1+2

• Arresting capacity 100 kA 10/350 µs, BET-tested
• Pre-mounted and ready for connection, incl. connecting bridges, labelled connection terminals
• With remote signalling and potential-free NO contact for function monitoring
• For use in TN-S and TT network system

Note: Max. backup fuse (required only if not already fitted in network) 125 A gL/gG.
  • Lightning current-tested
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • 230/400 V system
  • Combination protection device made of type 1 and type 2
  • Transition from LPZ 0 to LPZ 2
  • Remote signalling
  • CO₂ footprint (PCF)
  • Packaging without plastic
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Network formOther
Blow-outno
Signalling on deviceVisual
Protection ratingIP20
Maximum continuous voltage (L-N)255 V
Maximum continuous voltage (N-PE)255 V
Lightning surge current (10/350)100 kA
Remote signallingyes
Nominal voltage AC (50/60 Hz)230 V
Lightning surge current (10/350 μs)50 kA
Maximum continuous voltage AC255 V
Nominal discharge current (8/20 µs)50 kA
Pole version3+N/PE
Installation typeDIN rail 35 mm
Max. mains-side overcurrent protection125
Short-circuit resistance for max. mains-side overcurrent protection25 kA
Version for3+1-pole with FS; 255 V
Operating temperature, max.85 °C
Operating temperature, min.-40 °C
SPD to IEC 61643-1Class I+II
SPD to EN 61643-11Type 1+2
Lightning protection zone LPZ0→2
Maximum discharge current (8/20 μs)100 kA
Follow current quenching capacity (eff) [N-PE]25 kA
Short-circuit resistance25 kA
Response time<25 ns
Maximum back-up fuse125 A
Permitted temperature range, max.85 °C
Permitted temperature range, min.-40 °C
Dimension255V
CO2 Footprint (GWP) Cradle-to-Gate11,0412 kg CO2e / 1 Piece

Connectivity options

Arrester surge current (8/20 µs) [total]100 kA
Conductor cross-section, rigid (single-wire/multiwire), min.10 mm²
