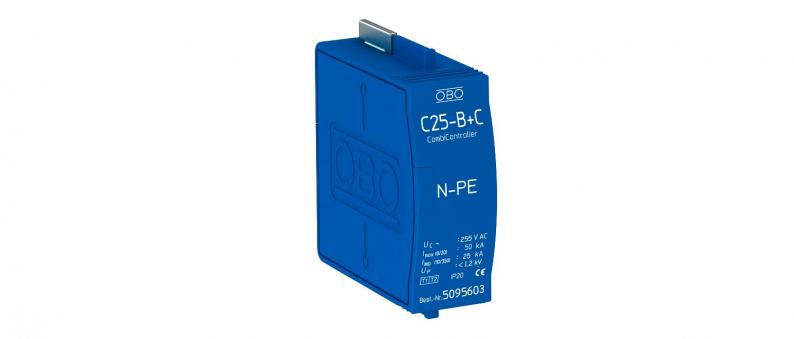

Plug-in arrester, total spark gap between N and PE 255 V

Type C 25-B+C 0 | Item no. 5095603 | EAN 4012195919391

Data sheet (PDF)

REACH Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

Declaration of conformity (PDF)

Show all variants

Item no. / Type

5095603 / C 25-B+C 0

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Plug-in total discharge gap for use between neutral lines (N) and protector (PE) Suitable for use in combination with:

• CombiController, type V 25-B+C
• SurgeController, type V 20-C
• SurgeController, type V 10-C
* Complete = Plug-in arrester and base

Technical data

Network form	Other
Blow-out	no
Signalling on device	None
Protection rating	IP20
Nominal discharge current (8/20 µs) [N-PE]	30 kA
Remote signalling	no
Nominal voltage AC (50/60 Hz)	230 V
Lightning surge current (10/350 μs)	25 kA
Maximum continuous voltage AC	255 V
Nominal discharge current (8/20 µs)	30 kA
Pole version	N/PE
Installation type	On basic element
Max. mains-side overcurrent protection	160
Version for	1-pole cover; 255 V
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
SPD to IEC 61643-1	Class I+II
SPD to EN 61643-11	Type 1+2
Lightning protection zone LPZ	0→2
Maximum discharge current (8/20 μs)	50 kA
Follow current quenching capacity (eff) [N-PE]	0,1 kA
Response time	<100 ns
Maximum back-up fuse	160 A
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Dimension	255V
CO2 Footprint (GWP) Cradle-to-Gate	0,35 kg CO2e / 1 Piece

Connectivity options

Arrester surge current (8/20 µs) [total]	30 kA
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
