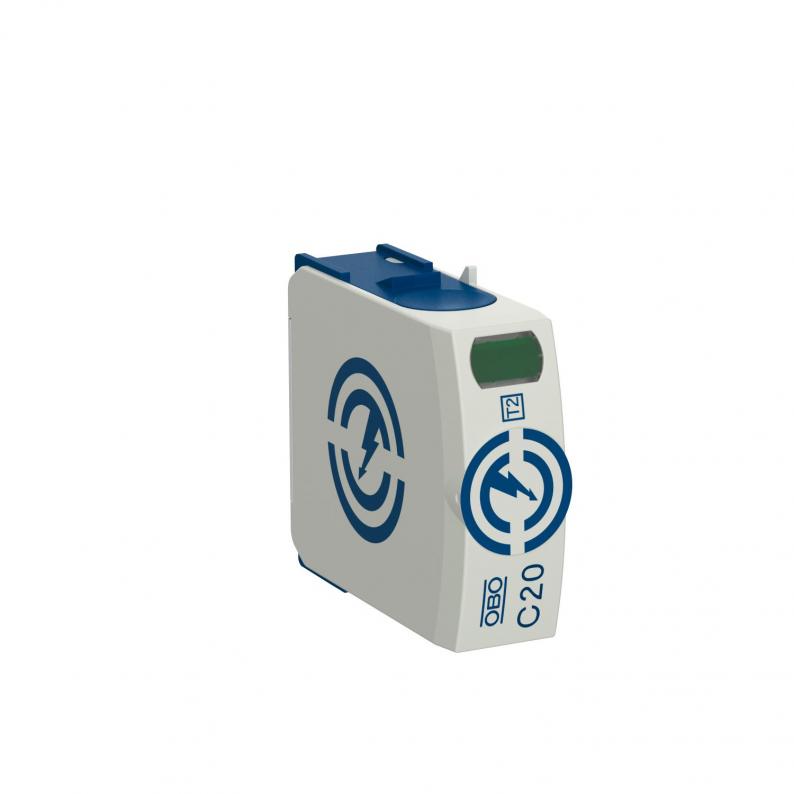

Plug-in arrester C20

Plug-in arrester C20

Type C20-0-255 | Item no. 5095600 | EAN 4012196329694

Show all variants
Item no. / Type
5095600 / C20-0-255
Protection rating
IP20
Pole version
N/PE

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

N-PE surge arrester, type 2


• For surge voltage protection equipotential bonding to VDE 0100-443 (IEC 60364-4-44)

• Discharge capacity to 40 kA (8/20) per pole through high-performance varistors

• Modular connectable arrester with dynamic cut-off unit and visual status display

• Locking mechanism with vibration protection and voltage keying

• Plastic (UL 94 V-0)


Application: Equipotential bonding in main and sub-distributors.
  • Underwriters Laboratories Inc., USA + CSA, Canada
  • Österreichischer Verband für Elektrotechnik, Austria
  • Verband der Elektrotechnik, Elektronik, Informationstechnik e.V., Germany
  • KEMA-KEUR, Netherlands
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • EurAsian Conformity
  • Regulatory Compliance Mark – Declaration of Conformity for Australia/New Zealand
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 1 to LPZ 2
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging made entirely from recycled cardboard

Technical data

Technical data

Pole number1
Network formOther
Blow-outno
Signalling on deviceVisual
Protection ratingIP20
Maximum continuous voltage (N-PE)255 V
Nominal discharge current (8/20 µs) [N-PE]40 kA
Housing material surge protection componentsPA UL 94 V-0
Maximum discharge current (8/20 μs) [N-PE]60 kA
Remote signallingno
Test class, type 2yes
Nominal voltage AC (50/60 Hz)230 V
Integrated back-up fuseno
Maximum continuous voltage AC255 V
Nominal discharge current (8/20 µs)20 kA
Pole versionN/PE
Installation typeOn basic element
Switching power AC230 V; 0,5 A
Switching power DC230 V; 0,1 A / 75 V; 0,5 A
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms1200 V
SPD to UL 1449Type 4
Minimum distance1,5 mm
ApprovalsVDE, KEMA, UL, ÖVE
Short-circuit resistantyes
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
Torque4 Nm
SPD to IEC 61643-1Class II
SPD to EN 61643-11Type 2
Maximum discharge current (8/20 μs)40 kA
Follow current quenching capacity (eff) [N-PE]0,1 kA
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Dimension255V
CO2 Footprint (GWP) Cradle-to-Gate0,2585 kg CO2e / 1 Piece
