Partition GK-TW53
Type GK-TW53 | Item no. 6113290 | EAN 4012196419685
Item no. / Type
6113290 / GK-TW53
Suitable for duct depth
53
Smallest selling unit: 2 m
2m
Description

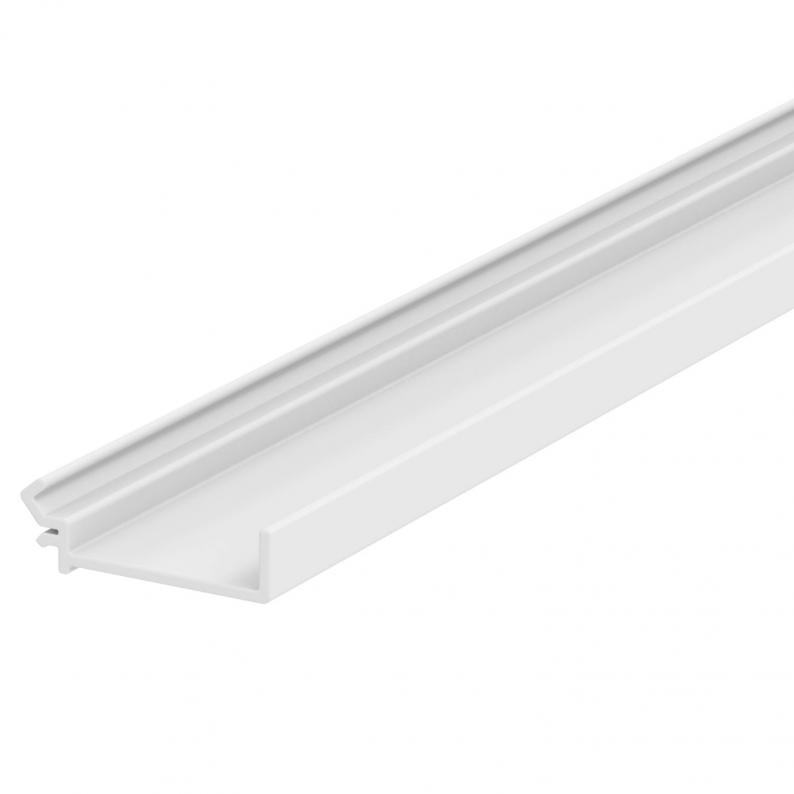

Partition for mounting in Rapid 45-2 GK and GA device installation trunking for installing cables of different voltage levels.
Technical data

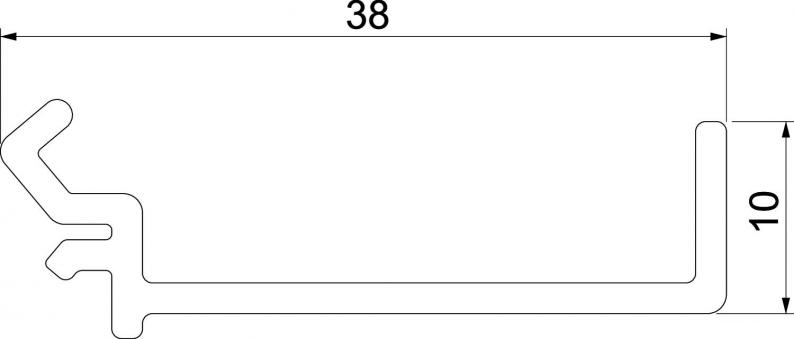

Dimensions
| Length | 2000 mm |
|---|---|
| Width | 10 mm |
| Height | 38 mm |
Technical data
| Halogen-free | no |
|---|---|
| Suitable for duct depth | 53 |
| Protection rating | IP40 |
| Protection rating IK code | IK08 |
| Fastening type | Plug-in |
| Version for | Single |
| Permitted temperature range, max. | 60 °C |
| Permitted temperature range, min. | -15 °C |
| Dimension | 38x13x2000 |
| Material | Polyvinylchloride |
| Colour | Light grey; RAL 7035 |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,302 kg CO2e / 1 Meter |
