MultiBase base + NPE
Type MB 1+NPE | Item no. 5096650 | EAN 4012195415770
Item no. / Type
5096650 / MB 1+NPE
Smallest selling unit: 1 piece
1piece
Description
• Suitable for V 25-B+C, V 20-C and V10-C
• Pre-mounted and ready for connection
• Multifunction terminals for easy connection to series-mounted devices
• Upper parts can be rotated through 180 degrees
• For TN-S and TT network systems
• Pre-mounted and ready for connection
• Multifunction terminals for easy connection to series-mounted devices
• Upper parts can be rotated through 180 degrees
• For TN-S and TT network systems
Technical data
Technical data
| Network form | Other |
|---|---|
| Protection rating | IP20 |
| Remote signalling | no |
| Pole version | 1+N/PE |
| Installation type | DIN rail 35 mm |
| Version for | 1+NPE |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |

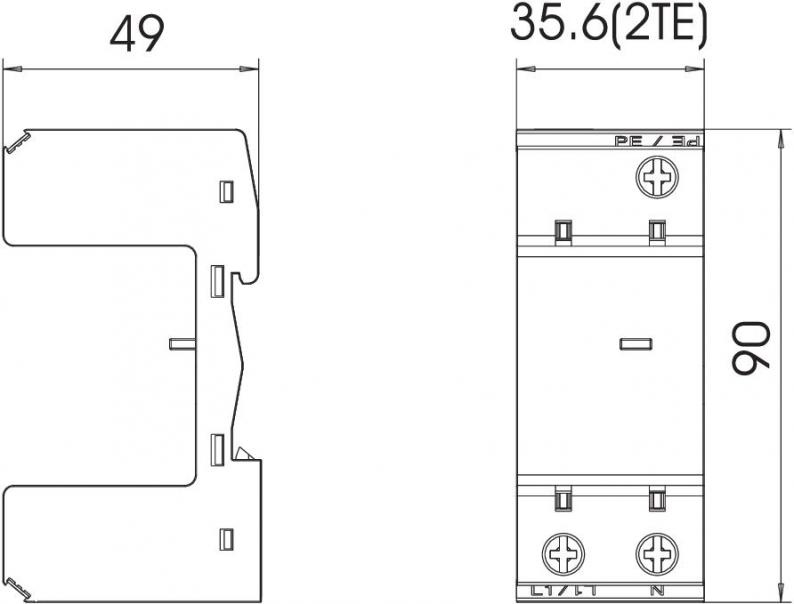

| Dimension | 1+NPE |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,5975 kg CO2e / 1 Piece |
Connectivity options
| Conductor cross-section, rigid (single-wire/multiwire), min. | 2,5 mm² |
|---|
