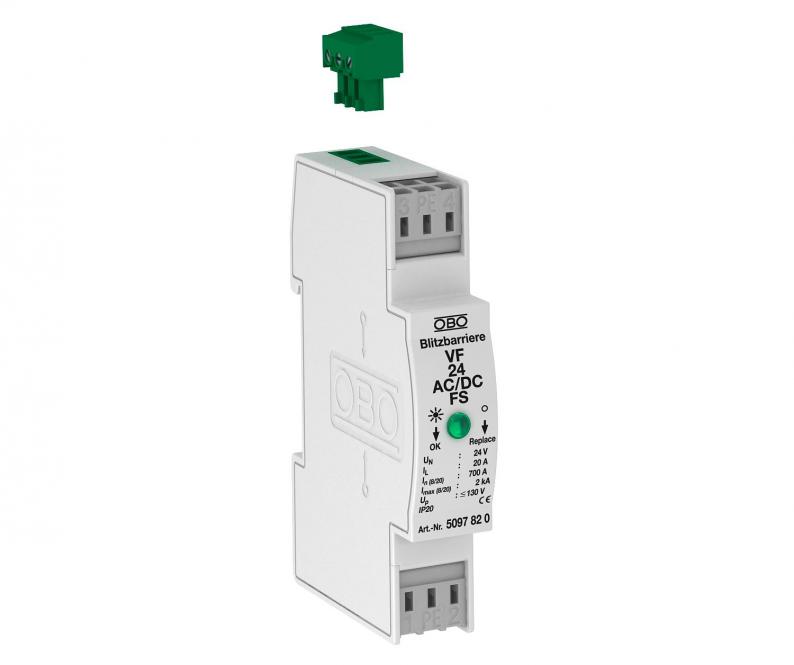

MCR protection for 2-pole power supply with remote signalling, 24 V AC/DC
Type VF24-AC/DC-FS | Item no. 5097820 | EAN 4012195578185
Item no. / Type
5097820 / VF24-AC/DC-FS
Protection rating
IP20
Pole version
2
Smallest selling unit: 1 piece
1piece
Description
Surge protection/fine power protection, type 3, to EN 61643-11 with remote signalling
• With remote signalling, potential-free changeover contact, for function monitoring
• Suitable for DC and AC systems
• With visual function display
• With easy mounting, screwless connection terminals
• In space-saving 17.5 mm grid
• Y circuit
Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.
• With remote signalling, potential-free changeover contact, for function monitoring
• Suitable for DC and AC systems
• With visual function display
• With easy mounting, screwless connection terminals
• In space-saving 17.5 mm grid
• Y circuit
Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.
Technical data
Technical data
| Pole number | 3 |
|---|---|
| Network form | Other |
| Blow-out | no |
| Signalling on device | Visual |
| Protection level wire-wire | <160 V |
| Protection level wire-earth | <1200 V |
| Protection rating | IP20 |
| Remote signalling | yes |
| Test class, type 3 | yes |
| Nominal voltage AC (50/60 Hz) | 24 V |
| Protection level [L-N] | ≤1000 |
| Maximum continuous voltage AC | 34 V |
| Maximum continuous voltage DC | 46 V |
| Nominal discharge current (8/20 µs) | 0,7 kA |
| Pole version | 2 |
| Installation type | DIN rail 35 mm |
| Max. mains-side overcurrent protection | 16 |
| OBO_Nominal load current (input/output terminal) | 20 A |
| Operating temperature, max. | 80 °C |
| Operating temperature, min. | -40 °C |
| SPD to IEC 61643-1 | Class III |
| SPD to EN 61643-11 | Type 3 |
| Lightning protection zone LPZ | 2→3 |
| Maximum discharge current (8/20 μs) | 2 kA |
| Response time | <25 ns |
| Maximum back-up fuse | 16 A |
| Permitted temperature range, max. | 80 °C |
| Permitted temperature range, min. | -40 °C |
| Dimension | 24V AC |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2757 kg CO2e / 1 Piece |
Connectivity options
| FM contacts | Changeover |
|---|---|
| Conductor cross-section, rigid (single-wire/multiwire), min. | 0,14 mm² |
