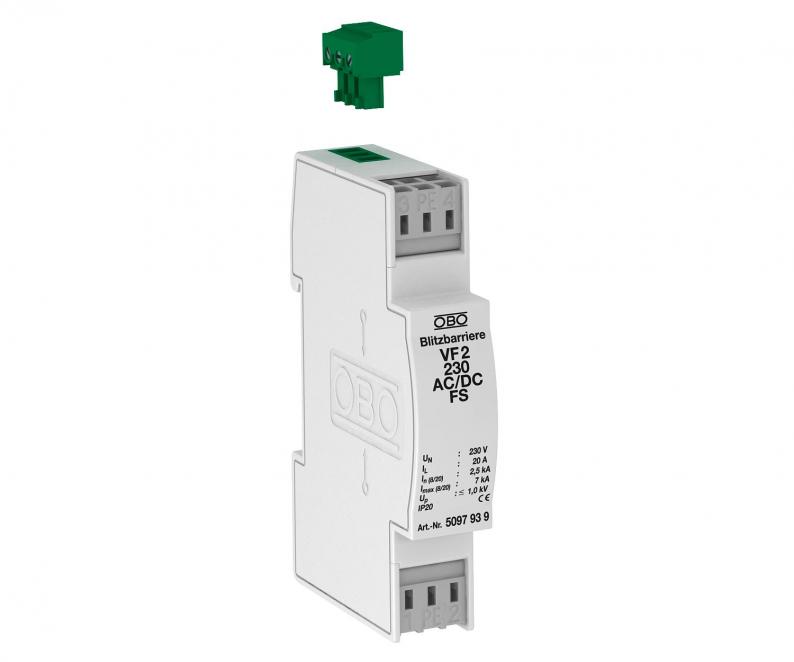

MCR protection for 2-pole for power supply with leak current-free remote signalling, 230 V AC/DC

MCR protection for 2-pole for power supply with leak current-free remote signalling, 230 V AC/DC

Type VF2-230-AC/DC-FS | Item no. 5097939 | EAN 4012195578260

Show all variants
Item no. / Type
5097939 / VF2-230-AC/DC-FS
Protection rating
IP20

Smallest selling unit: 1 piece

DescriptionTechnical dataDownloadsVariants

Description

Type 3 surge protection/fine network protection to EN 61643-11 with leak current-free remote signalling

• With remote signalling: potential-free NC contact for function monitoring

• With installation-friendly, screwless connection terminals

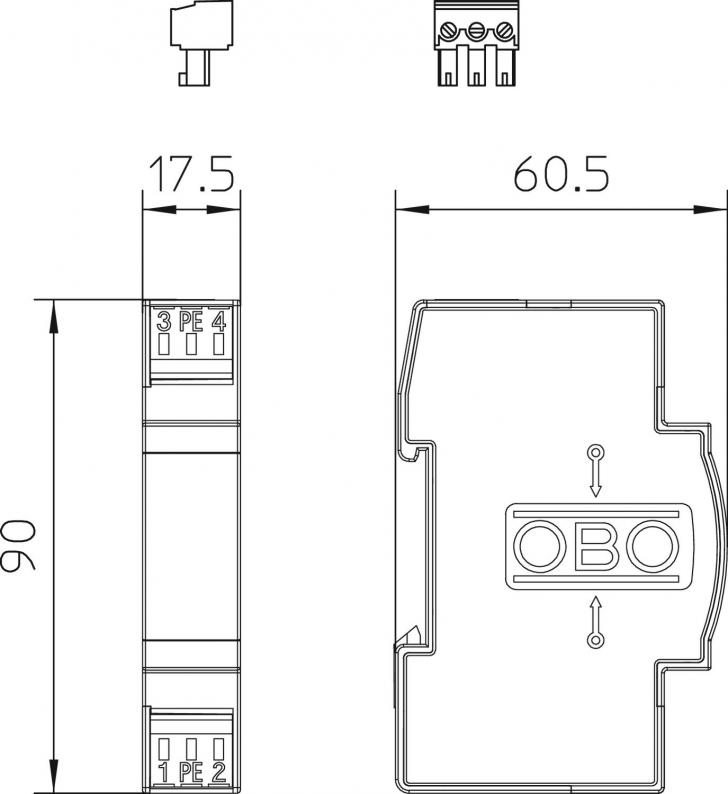

• In space-saving 17.5 mm grid

• Y circuit


Application: Universal use on 35 mm DIN profile rails in any standard distributor housing.
  • MAGYAR ELEKTROTECHNIKAI ELLENŐRZŐ INTÉZET Budapest, Hungary
  • Russia, GOST The State Committee for Standards
  • 5-year warranty
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Protection device to DIN EN 61643-11 or IEC 61643-11
  • Transition from LPZ 2 to LPZ 3
  • Remote signalling
  • Installation electrotechnical expertise
  • CO₂ footprint (PCF)
  • Packaging without plastic

Technical data

Technical data

Pole number3
Network formOther
Blow-outno
Signalling on deviceNone
Protection level wire-wire< 1000 V
Protection level wire-earth< 1400 V
Protection ratingIP20
Remote signallingyes
Test class, type 3yes
Protection level [L-N]≤1000
Maximum continuous voltage AC255 V
Maximum continuous voltage DC350 V
Nominal discharge current (8/20 µs)2,5 kA
Installation typeDIN rail 35 mm
OBO_Nominal load current (input/output terminal)20 A
Operating temperature, max.80 °C
Operating temperature, min.-40 °C
SPD to IEC 61643-1Class III
SPD to EN 61643-11Type 3
Lightning protection zone LPZ2→3
Maximum discharge current (8/20 μs)7 kA
Response time<25 ns
Permitted temperature range, max.80 °C
Permitted temperature range, min.-40 °C
Dimension230V AC
CO2 Footprint (GWP) Cradle-to-Gate0,602 kg CO2e / 1 Piece

Connectivity options

FM contactsNC contact
Conductor cross-section, rigid (single-wire/multiwire), min.0,14 mm²
