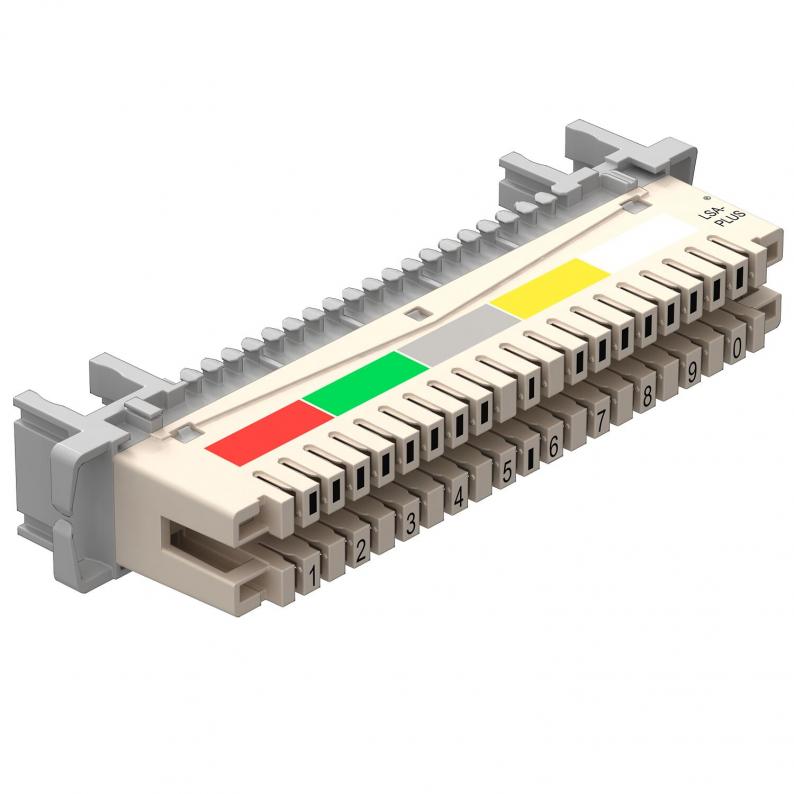

LSA separating strip
Type LSA-T-LEI | Item no. 5084012 | EAN 4012195525196
Item no. / Type
5084012 / LSA-T-LEI
Smallest selling unit: 1 piece
1piece
Description
LSA separating strip 2/10 for attaching up to 10 double-cores.
• For use with protection element LSA-BF-180; LSA-BF-24; LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: White
• Clampable cross-sections 0.14–0.5 mm2 (AWG 26-20)
LSA-Plus separating strip with the options of temporarily interrupting connections for testing purposes
• For use with protection element LSA-BF-180; LSA-BF-24; LSA-B-MAG
• Fastening to mounting trough LSA-M
• Colour: White
• Clampable cross-sections 0.14–0.5 mm2 (AWG 26-20)
LSA-Plus separating strip with the options of temporarily interrupting connections for testing purposes
Technical data
Technical data
| Number of poles | 20 |
|---|---|
| Dimension | 40-polig |
| Colour | White |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,0884 kg CO2e / 1 Piece |
