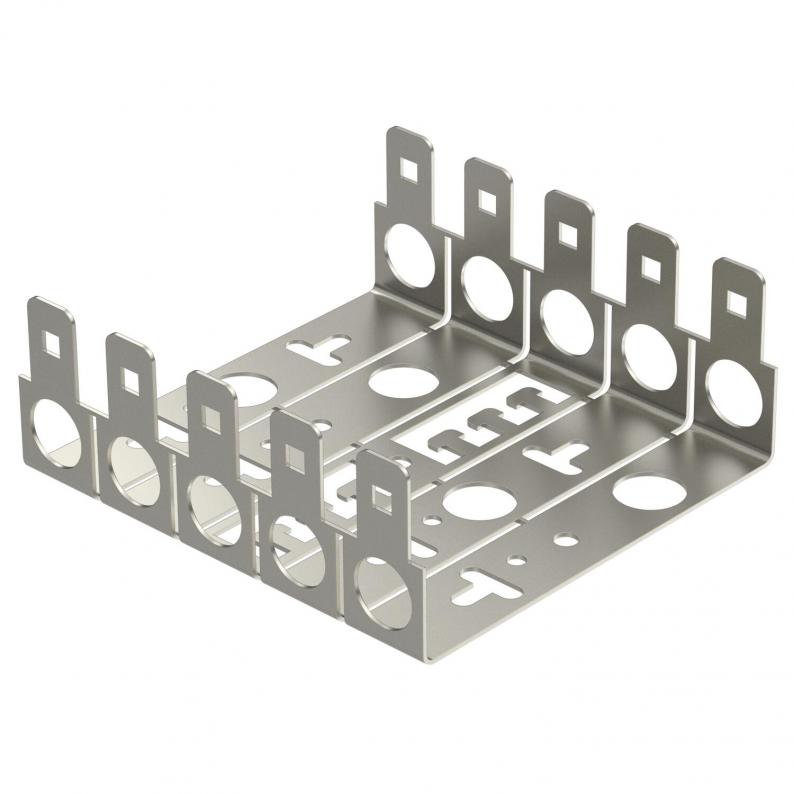

LSA installation trough
Type LSA-M | Item no. 5084036 | EAN 4012195525554
Item no. / Type
5084036 / LSA-M
Number of installable connection strips
5
Smallest selling unit: 1 piece
1piece
Description
Installation trough for 5 connection rails or separating strips. Grid 22.5 mm.
Depth: 22 mm; 30 mm; 50 mm
LSA-Plus mounting trough for mounting LSA Plus connection rails and separating strips.
Depth: 22 mm; 30 mm; 50 mm
LSA-Plus mounting trough for mounting LSA Plus connection rails and separating strips.
Technical data

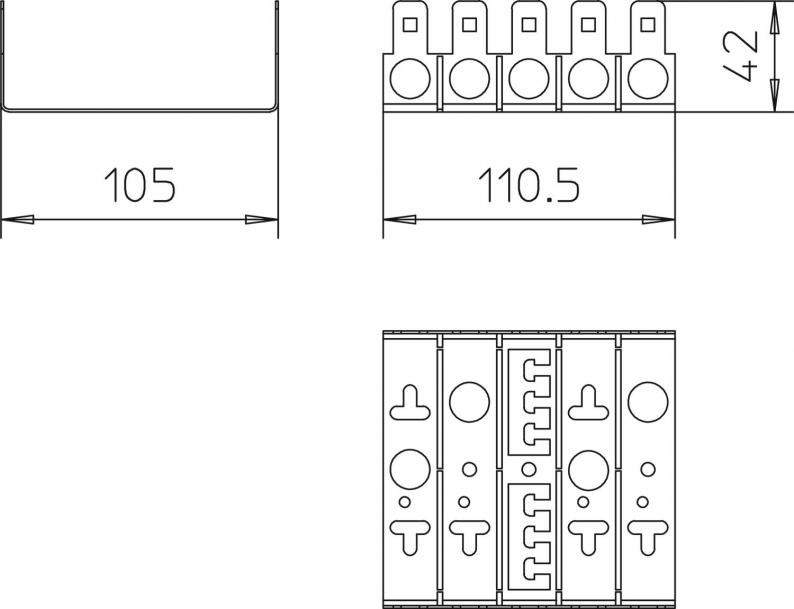

Dimensions
| Length | 110,5 mm |
|---|---|
| Width | 105 mm |
| Height | 42 mm |
Technical data
| Number of installable connection strips | 5 |
|---|---|
| Grid | 22,5 mm |
| Dimension | 5 |
| Material | Steel |
| CO2 Footprint (GWP) Cradle-to-Gate | 0,2016 kg CO2e / 1 Piece |
