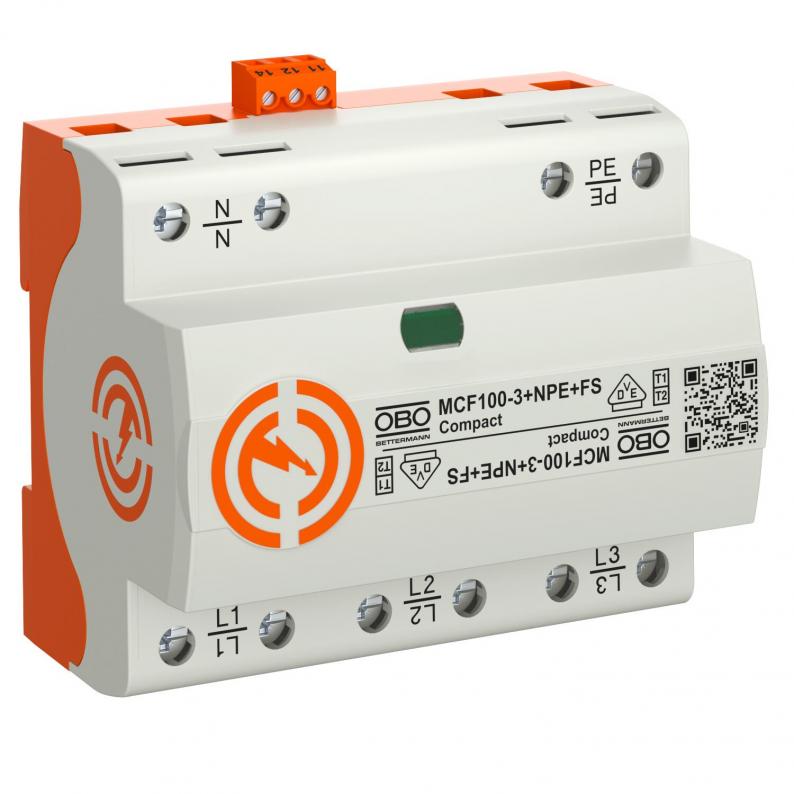

LightningController Compact - MCF100

Type MCF100-3+NPE+FS | Item no. 5096987 | EAN 4012196487332

Data sheet (PDF)

Declaration of conformity (PDF)

RoHS Declaration of conformity (PDF)

REACH Declaration of conformity (PDF)

Show all variants

Item no. / Type

5096987 / MCF100-3+NPE+FS

Protection rating

IP20

Remote signalling

yes

Pole version

3+N/PE

Smallest selling unit: 1 piece

Description Technical data Downloads Variants

Description

Combination arrester, lightning current and surge arrester, type 1+2

• Protection level ≤ 1.5 kV
• For lightning protection equipotential bonding to VDE 0185-305 (IEC 62305)
• Lightning current arresting capacity up to 100 kA (10/350), 3+NPE
• Line following current quenching 50 kA Ipeak, arrester backup fuse to 315 A gL/gG
• Fulfils the requirements of VDE-AR-N 4100 for use in pre-meter area
• Encapsulated, non-extinguishing spark gap arrester for use in distributor housings

Application: Industrial systems and buildings with external lightning protection of the highest class I to IV.
Compact protection device

Technical data

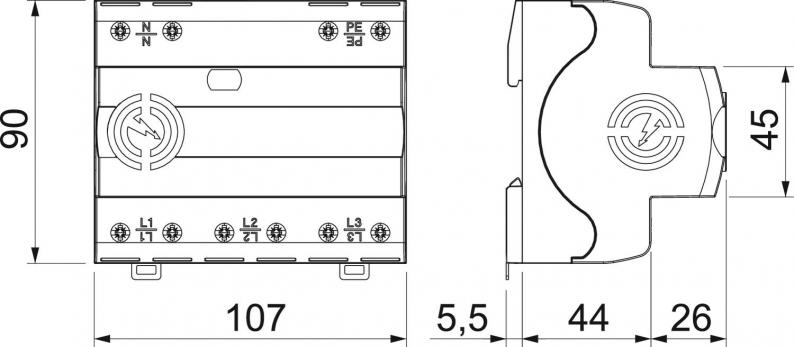

Dimensions

Length	90 mm
Width	107 mm
Height	70 mm

Technical data

Pole number	4
Network form	TT
Signalling on device	Visual
Protection rating	IP20
Maximum continuous voltage (L-N)	255 V
Maximum continuous voltage (N-PE)	255 V
Nominal discharge current (8/20 µs) [L-N]	35 kA
Nominal discharge current (8/20 µs) [N-PE]	100 kA
Lightning surge current (10/350)	100 kA
Housing material surge protection components	PA UL 94 V-0
Maximum discharge current (8/20 μs) [L-N]	50 kA
Maximum discharge current (8/20 μs) [N-PE]	100 kA
Remote signalling	yes
Nominal voltage AC (50/60 Hz)	230 V
Lightning surge current (10/350 μs)	25 kA
Protection level [L-N]	≤1,5
Maximum continuous voltage AC	255 V
Nominal discharge current (8/20 µs)	35 kA
Pole version	3+N/PE
Installation type	DIN rail 35 mm
Max. mains-side overcurrent protection	315 A
Switching power AC	250V/ 1,5A
Switching power DC	250V/ 0,1A
Short-circuit resistance for max. mains-side overcurrent protection	50 kA eff
TOV voltage [L-N] ‒ withstand mode ‒ 5 s	440 V
TOV voltage [L-N] ‒ fail safe mode ‒ 120 min.	442 V
TOV voltage [N-PE] ‒ withstand mode ‒ 200 ms	1200 V
SPD to UL 1449	Type 4
Minimum distance	0 mm
Approvals	VDE, UL
Conductor cross-section, flexible (fine-wire), max.	3 AWG
TN network form	yes
TN-C-S network form	yes
TN-S network form	yes
TT network form	yes
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C
Torque	5 Nm
SPD to IEC 61643-1	Class I+II
SPD to EN 61643-11	Type 1+2
Maximum discharge current (8/20 μs)	50 kA
Follow current quenching capacity (eff) [N-PE]	50 kA
Response time	<100 ns
Maximum back-up fuse	315 A
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Dimension	255V
CO2 Footprint (GWP) Cradle-to-Gate	4,7534 kg CO2e / 1 Piece

Connectivity options

Conductor cross-section, flexible (fine-wire), max.	25 mm²
Conductor cross-section, flexible (fine-wire), min.	1,5 mm²
FM contacts	Changeover
Connection cross-section, FM terminals, max.	1,5 mm²
Connection cross-section, FM terminals, min.	0,5 mm²
Connection cross-section, FM terminals, max.	16 AWG
Connection cross-section, FM terminals, min.	28 AWG
Arrester surge current (8/20 µs) [total]	100 kA
Conductor cross-section, rigid (single-wire/multiwire), min.	1,5 mm²
Conductor cross-section, rigid (single-wire/multiwire), max.	2 AWG
Conductor cross-section, rigid (single-wire/multiwire), min.	16 AWG
Combined voltage protection level [L-PE]	2,5 kV
